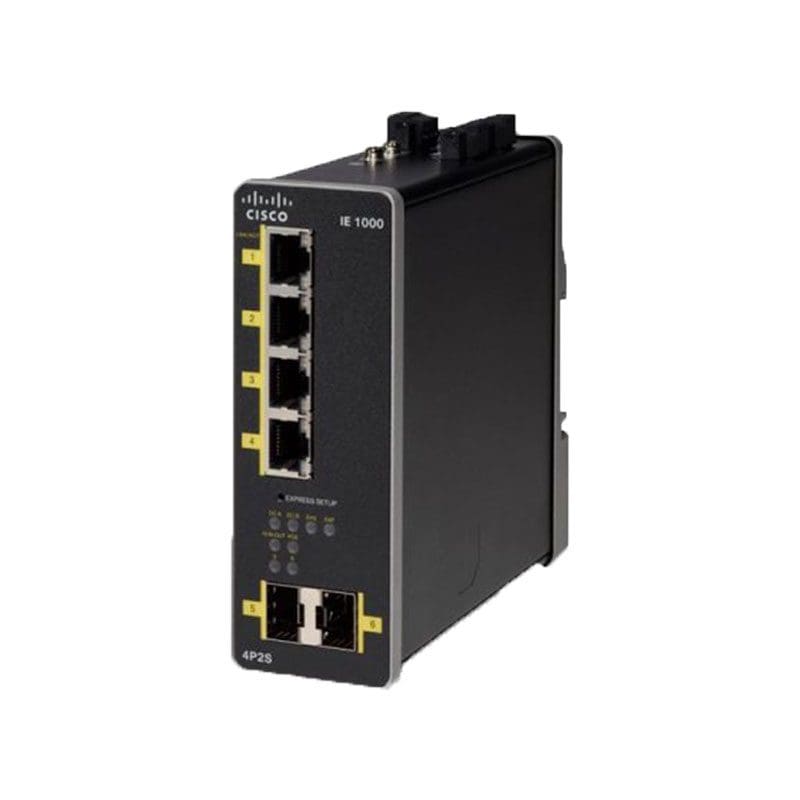

Refurbished IE-1000-4P2S-LM Technical Specification
Cisco Ethernet 1000 Series Switch 6 ports
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Industrial Ethernet
Model :1000 Series
Packaged Quantity :1
RAM
Installed Size :128 megabyte
Flash Memory
Installed Size :160 megabyte, 160 megabyte
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Gigabit Ethernet
Form Factor :DIN rail mountable
Ports Qty :6
Routing Protocol :IGMP, IGMPv2
Manageable :Yes
Remote Management Protocol :HTTP, RMON, SNMP, SNMP 2, SNMP 3, SSH
Power Over Ethernet (PoE) :PoE+
Features :BOOTP support, Bridge protocol data unit (BPDU), Class of Service (CoS), DHCP server, DHCP snooping, DHCP support, DiffServ Code Point (DSCP) support, Full duplex mode, IGMP snooping, Internet Control Message Protocol (ICMP), LLDP support, Management Information Base (MIB), Management Information Base (MIB) II, Multiple Spanning Tree Protocol (MSTP) support, Port Security, Spanning Tree Protocol (STP) support, Static IP mode, Syslog support
Compliant Standards :IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ports
Qty :4
Type :10/100/1000 (PoE+)
Ports (2nd)
Qty :2
Type :1000Base-X SFP (uplink)
Interface Provided
Interfaces :2 x 1000Base-X SFP, 4 x 1000Base-T RJ-45
Power Device
Nominal Voltage :DC 48 – 54 V
Power Consumption Operational :140.4 watt
