ICX7750-48F-RMT3 Technical Specifications

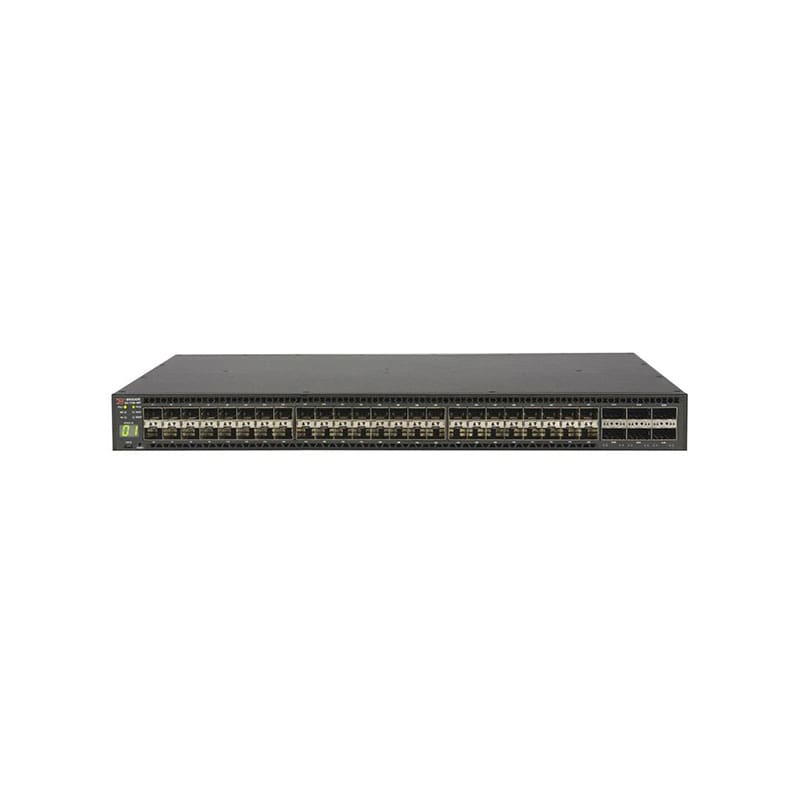

Brocade ICX 7750-48F 48-Ports Layer 3 Switch
Brand Name: Brocade
Product Type: Layer 3 Switch
Interfaces/Ports
Uplink Port: No
Modular: Yes
Stack Port: Yes
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology: 40 Gigabit Ethernet, 10 Gigabit Ethernet
Network Technology: 10GBase-X, 40GBase-X
I/O Expansions
Number of Total Expansion Slots: 54
Expansion Slot Type: SFP+, QSFP+
Number of SFP+ Slots: 48
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.3″
Depth: 16″
Weight: (Approximate) 19.98 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6, WEEE
