ICX7750-48F Technical Specifications

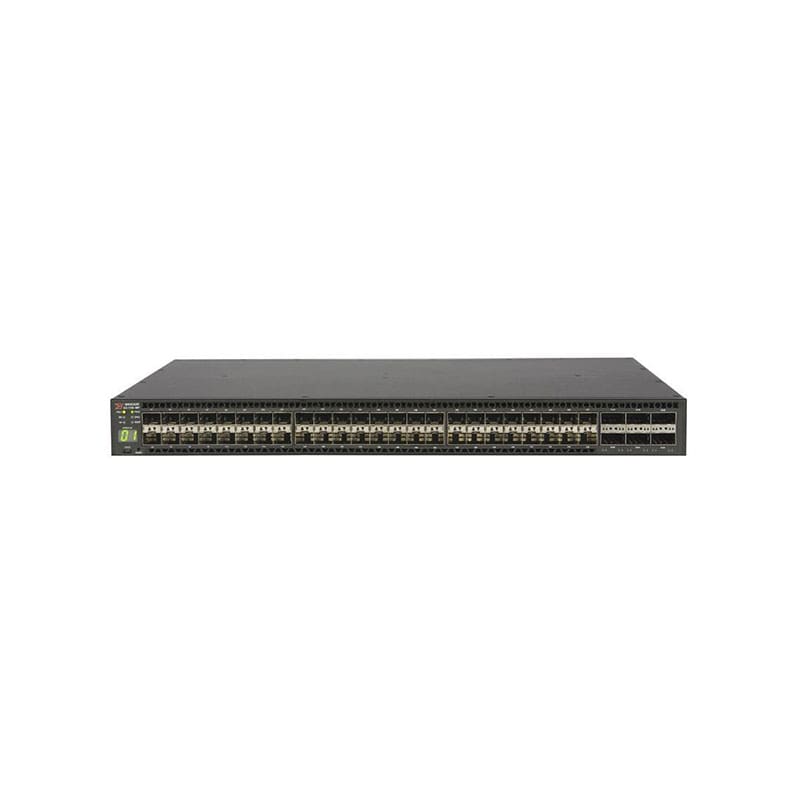

Ruckus ICX 7750-48F Switch 48 ports Managed Rack-mountable
Brand: Ruckus
Product Line: Ruckus ICX
Model: 7750-48F
Manufacturer: Ruckus Wireless
Network & Communication
Advanced Switching: Layer 3
Form Factor (Hubs & Switches): Rack-mountable
Jumbo Frame Support: Yes
MAC Address Table Size: 294912 entries
Manageable: Yes
Ports: 48
Product Type: Switch
Routing Protocol: RIP-1, RIP-2, Static IP routing, VRRP
Subcategory: Network hubs and switches
Switching Type: 10 Gigabit Ethernet
Expansion Slots
Expansion Slots: 1 (total) / 1 (free) x expansion slot
Connectivity
Port Quantity: 48
Port Type: 1 Gigabit / 10 Gigabit SFP+
Ports Type (2nd): 40 Gigabit QSFP+
Power
Power Consumption Operational: 269 watt
Power Supplies Supported: 2
Redundant Power Supply: Optional
Redundant Power Supply Supported: 1+1 (with optional power supply)
