ICX7750-48C Technical Specifications

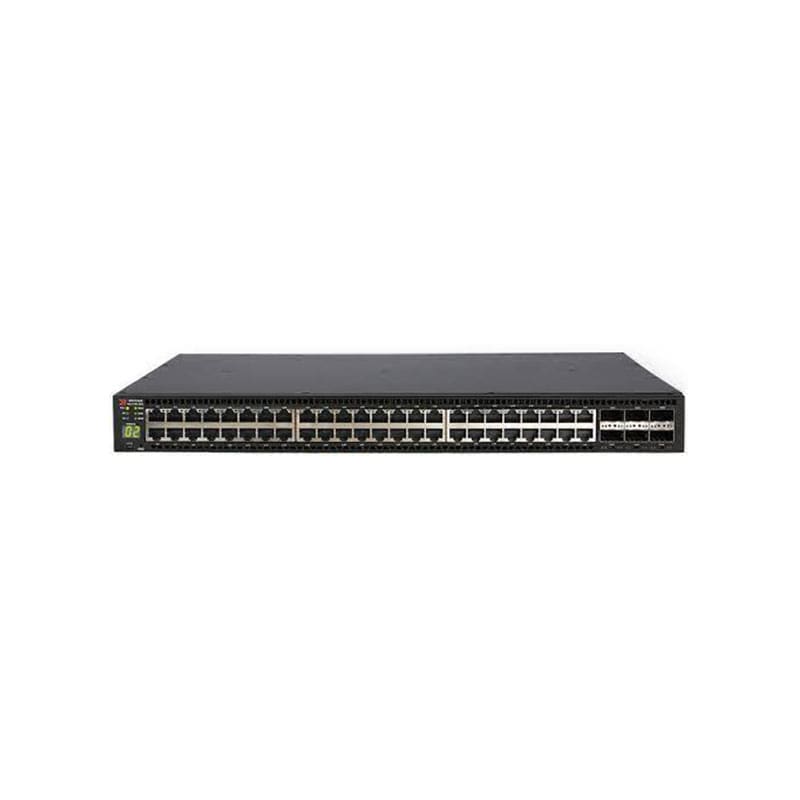

Ruckus ICX 7750-48C Switch 48 ports Managed Rack-mountable
Brand: Ruckus
Product Line: Ruckus ICX
Model: 7750-48C
Manufacturer: Ruckus Wireless
Network & Communication
Advanced Switching: Layer 3
Form Factor (Hubs & Switches): Rack-mountable
Jumbo Frame Support: Yes
MAC Address Table Size: 294912 entries
Manageable: Yes
Ports: 48
Product Type: Switch
Subcategory: Network hubs and switches
Switching Type: 10 Gigabit Ethernet
Connectivity
Port Quantity: 48
Port Type: 1000/10000
Ports Type (2nd): 40 Gigabit QSFP+
Power
Power Consumption Operational: 580 watt
Power Supplies Supported: 2
Redundant Power Supply: Yes
Technical Information
Encryption: AES, MD5
Humidity Range Storage: 5 – 80% (non-condensing)
Max Operating Temperature: 104 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Min Storage Temperature: -13 degree Fahrenheit
Operating Humidity: 5 – 95% (non-condensing)
