ICX7550-24-E2 Technical Specifications

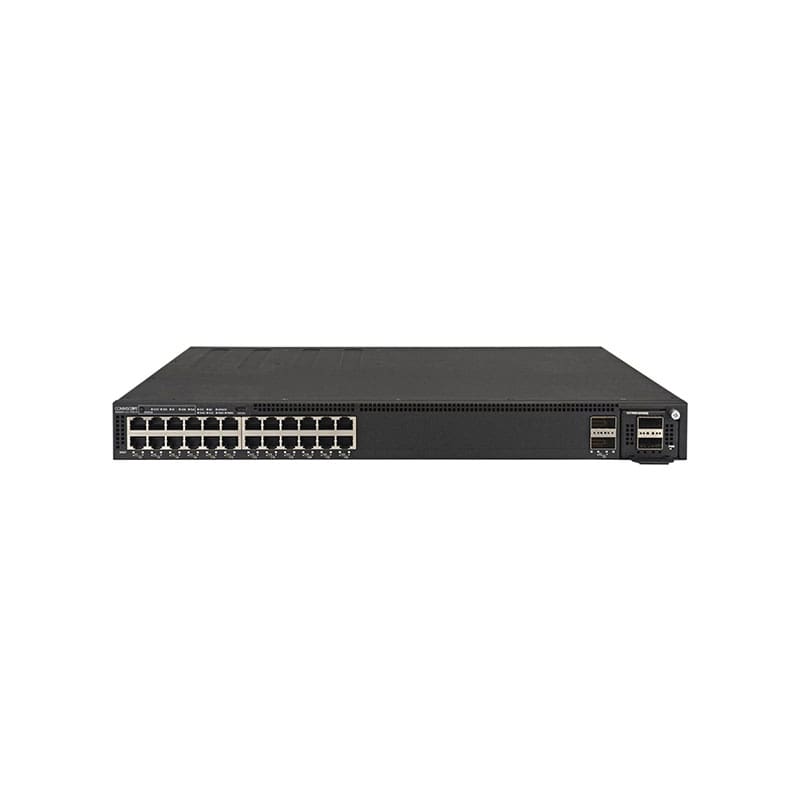

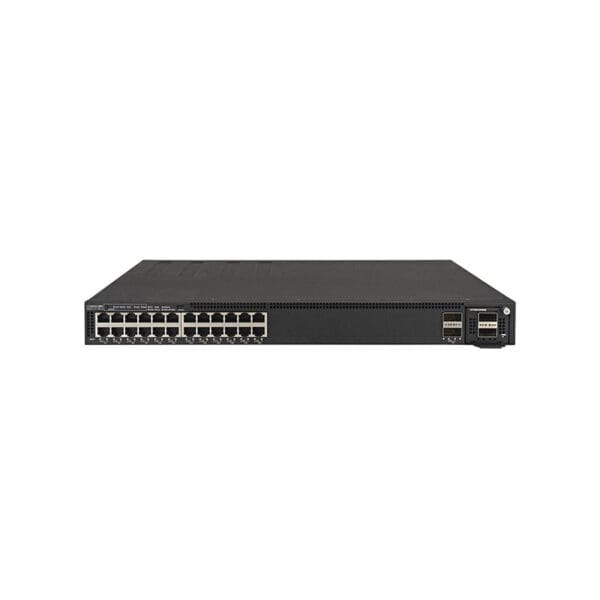

Ruckus ICX 7550-24-E2 Switch 24 ports Managed Rack-Mountable
Brand: Ruckus
Product Line: Ruckus ICX
Manufacture Part Number: ICX7550-24-E2
Model: 7550-24-E2
Manufacturer: Ruckus Wireless
Memory
Flash Memory Installed: 4 GB
RAM Installed: 4 GB
Network & Communication
Advanced Switching: Layer 3
Form Factor (Hubs & Switches): Rack-mountable
Jumbo Frame Support: 12288 bytes
Manageable: Yes
Max Units In A Stack: 12
Ports: 24
Product Type: Switch
Subcategory: Network hubs and switches
Switching Type: Gigabit Ethernet
Expansion Slots
Expansion Slots: 1 (total) / 1 (free) x expansion slot
Connectivity
Port Quantity: 24
Port Type: 10/100/1000
Ports Type (2nd): 40 Gigabit QSFP+ (uplink/stacking)
Power
Frequency: 50/60 hertz
Power Consumption Operational: 53.2 watt
Power Provided: 400 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Redundant Power Supply Supported: 1+1
