ICX7450-24-40G-E Technical Specifications

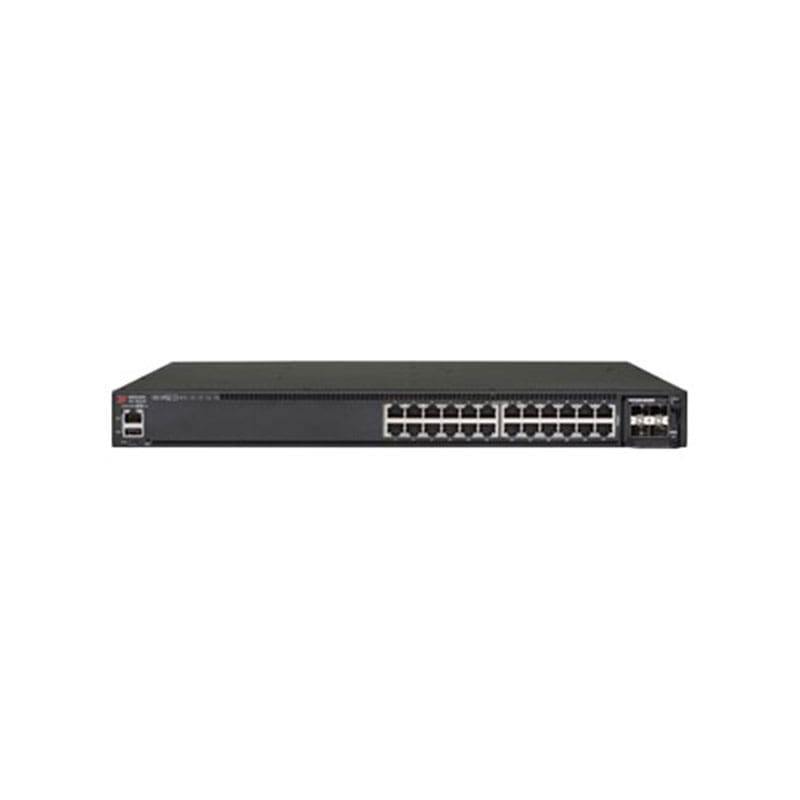

Brocade ICX7450-24 Layer 3 Switch
Brand Name: Brocade
Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 24
Uplink Port: No
Modular: Yes
Stack Port: No
Port/Expansion Slot Details: 3 x Expansion Slot, 24 x Gigabit Ethernet Network
Media & Performance
Media Type Supported: Optical Fiber, Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-TX
I/O Expansions
Number of Total Expansion Slots: 3
Network & Communication
Layer Supported: 4
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.3″
Depth: 15.5″
Weight: (Approximate) 14.11 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
