ICX6610-24F-I Technical Specifications

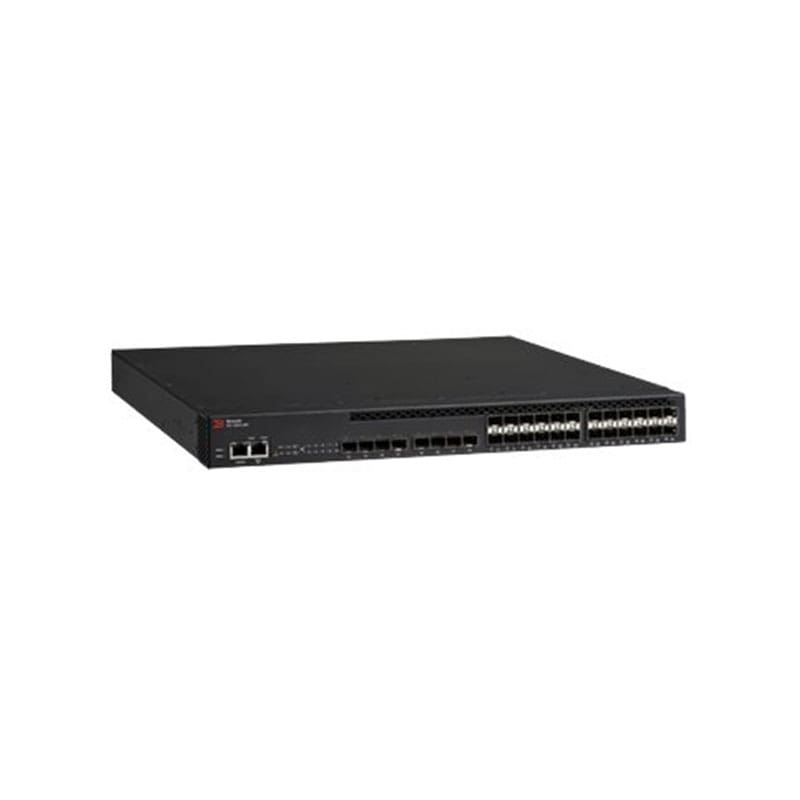

Ruckus ICX 6610-24F Switch 24 ports Managed Rack-mountable
Miscellaneous
Included Accessories: 4 rubber feet
Cables Included 1 x stacking cable – 3.3 ft
Dimensions & Weight
Width: 16.9 in
Depth: 16 in
Height: 1.7 in
Weight: 14.77 lbs
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Min Storage Temperature: -13 °F
Max Storage Temperature: 158 °F
General
Device Type; Switch – 24 ports – L3 – managed – stackable
Subtype: Gigabit Ethernet
Ports: 24 x SFP + 8 x SFP+
MAC Address Table Size: 32K entries
Jumbo Frame Support: 9000 bytes
Max Units In A Stack: 8
Encryption Algorithm: AES
Expansion / Connectivity
Power
Power Device: Internal power supply – hot-plug
Installed Qty: 1 (installed) / 2 (max)
Power Redundancy: Optional
Voltage Required: AC 120/230 V (50/60 Hz)
Power Consumption Operational: 125 Watt
