ICX6610-24-DC-E Technical Specifications

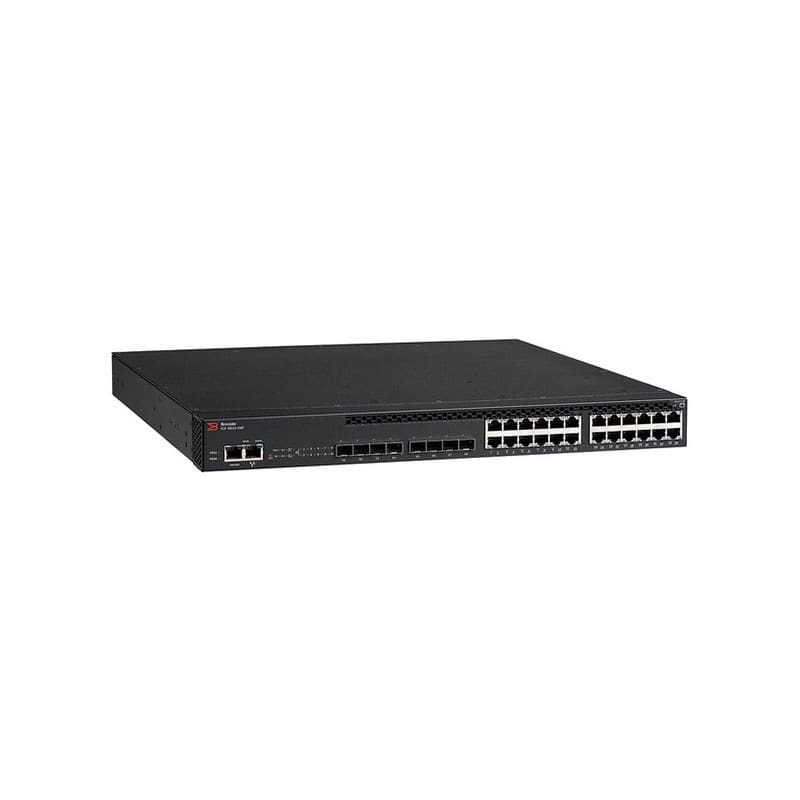

Ruckus ICX 6610-24 Switch 24 ports Managed Rack-mountable
Form Factor: Desktop, Rack-mountable
Jumbo Frame Support: 9216 bytes
MAC Address Table Size: 32000 entries
Manageable: Yes
Max Units In A Stack: 8
Ports Qty: 24
Subcategory: Network hubs and switches
Subtype: Gigabit Ethernet
Type: Switch
Power Device
Installed Qty: 1
Max Supported Qty: 2
Nominal Voltage: DC 60 V
Power Consumption Operational: 120 Watt
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Type: Internal power supply
Service
Support Details Full Contract Period: Lifetime
Support Details Type: Limited warranty
Software
Type: Brocade ICX 6610 Base Software
Dimensions & Weight
Depth: 40.64 cm
Height: 4.4 cm
Weight: 6.42 kg
Width: 42.9 cm
