IC983C-R2 Technical Specifications

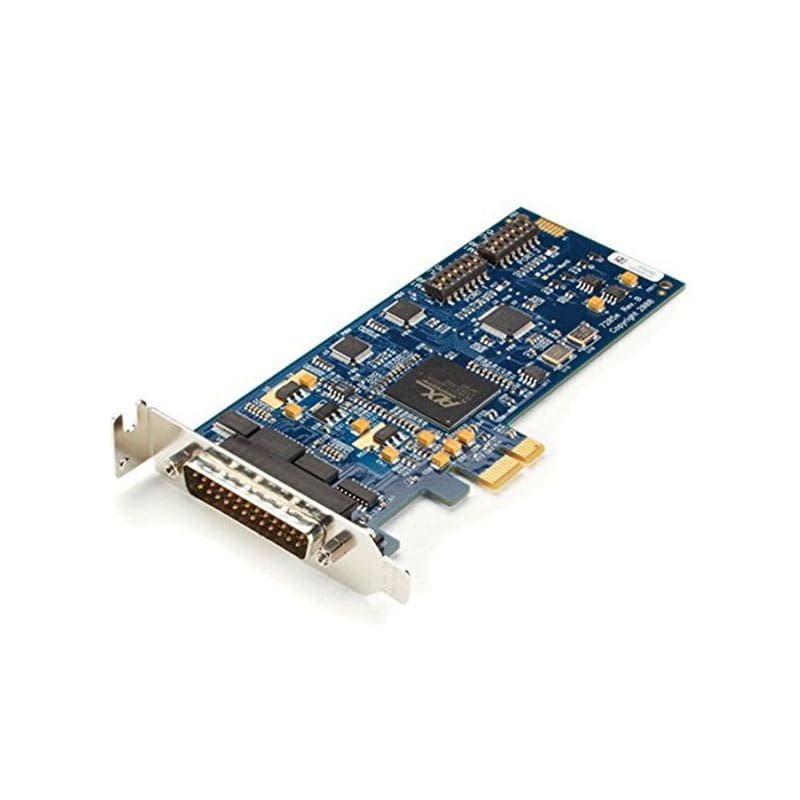

Black Box Async Serial Adapter PCIe RS-232/422/485 x 1 TAA Compliant
Brand: Black Box
Product Line: Black Box Async
Manufacturer: Black Box
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: RS-232, RS-422, RS-485
Data Transfer Rate: 921 Kbps
Features: 128-byte FIFO, 16550 UART support
Form Factor: Plug-in card
Host Interface: PCI Express
Product Type: Serial adapter
Connectivity
Port Quantity: 1
Network & Adapter Ports: RS-232/422/485
Technical Information
Max Operating Temperature: 158 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
MTBF: 1,300,000 Hours
Operating Humidity: 10 – 90% (non-condensing)
Product Information
Packaged Quantity: 1
Included Items
Cables: 1 x serial adapter (external), 1 x serial cable (external) – 3 ft
Dimensions & Weight
Weight: 6.98 ounce
Width: 2.5 inch
Depth: 5.7 inch
Certifications & Listings
TAA Compliant: Yes
