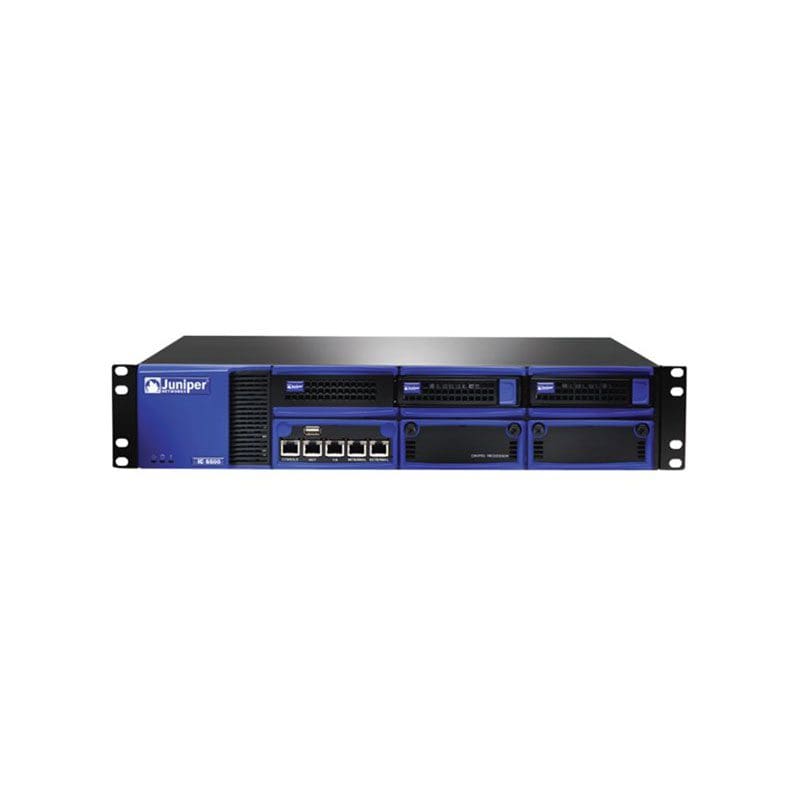

IC6500FIPS Technical Specifications
Juniper Networks Enterprise Infranet Controller 6500 FIPS Base System
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks Enterprise Infranet Controller
Model :6500 FIPS Base System
Packaged Quantity :1
Optical Storage
Type :None
Networking
Type :Security appliance
Form Factor :External
Ports Qty :4
Connectivity Technology :Wired
Data Link Protocol :Fast Ethernet, Ethernet, Gigabit Ethernet
Data Transfer Rate :1 GBps
Status Indicators :Power, Alert, HDD activity, Fail
Compliant Standards :IEEE 802.3z, IEEE 802.3u, IEEE 802.3ab
Interface Provided
Interfaces :4 x 1000Base-T – RJ-45, 1 x management – RJ-45
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Height (Rack Units) :2
Compliant Standards :UL 60950-1, VCCI Class A ITE, FCC Class A certified, EN 60950-1, EN 61000-3-2, EN55022 Class A, CSA C22.2 No. 60950-1-03, IEC 60950-1, EN55024
Dimensions & Weight
Width :17.2 inch
Depth :17.7 inch
Height :3.5 inch
Weight :26.9 lbs
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :8 – 90% (non-condensing)
