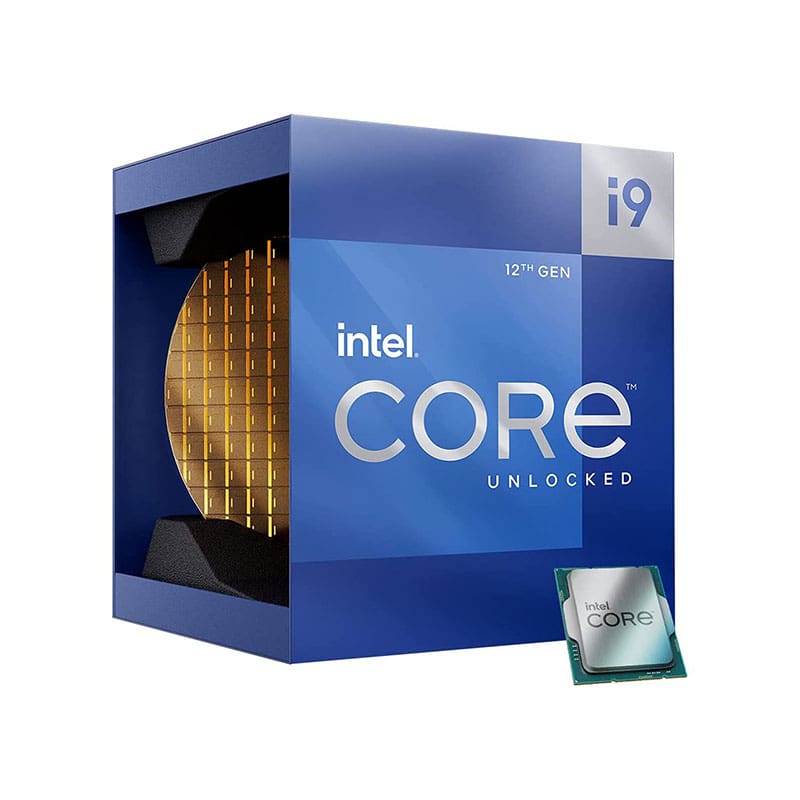

i9-12900 Technical Specifications
Intel Core i9 16-Core 2.40GHz 30MB Cache Socket FCLGA1700 Desktop Processor
Manufacturer: Intel
Brand: Intel
Architecture
Codename: Alder Lake-S
Generation: Core i9
Memory Support: DDR4, DDR5
DDR4 Speed: 3200 MT/s
DDR5 Speed: 4800 MT/s
Memory Bus: Dual-channel
ECC Memory: No
PCI-Express: Gen 5, 20 Lanes
Performance
Frequency: 2.4 GHz
Turbo Clock: up to 5.1 GHz
E-Core Frequency: 1800 MHz, up to 3.8 GHz
Base Clock: 100 MHz
Multiplier: 24.0x
Multiplier Unlocked: Yes
Processor
Market: Desktop
Core Config
Number of Cores: 16
Number of Threads: 24
Hybrid Cores: P-Cores: 8
E-Cores: 8
Physical
Socket: Intel Socket 1700
Foundry: Intel
Process Size: 10 nm
Die Size: 215 mm²
Package: FC-LGA16A
tCaseMax: 72°C
tJMax: 100°C
