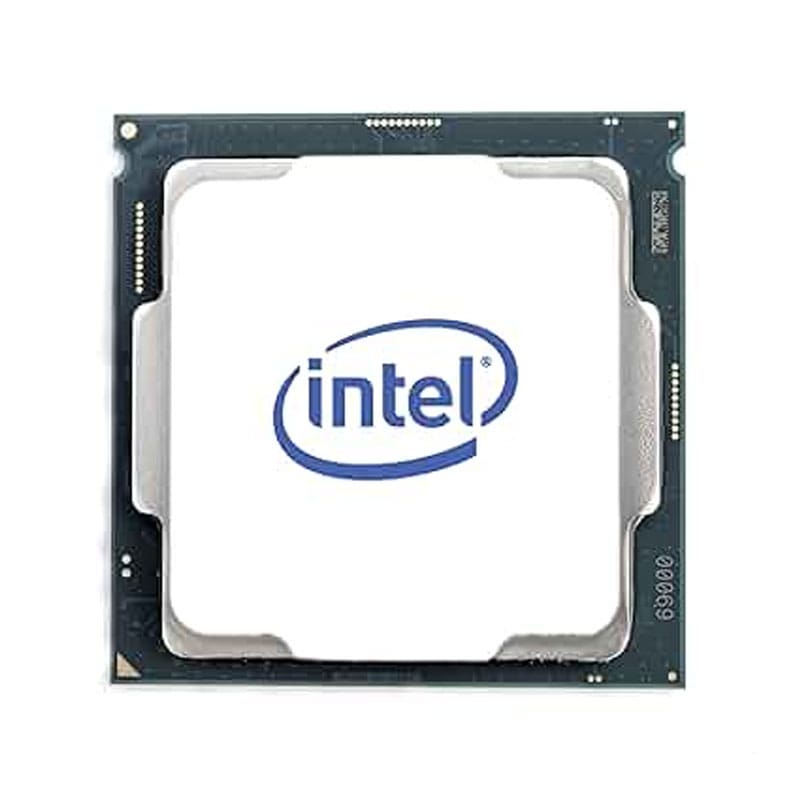

i7-8700 Intel Core i7 6-Core 3.20GHz 12MB L3 Cache Socket 1151 Processor

i7-8700 Overview

The Intel Core i7-8700 is a robust processor built for desktop computing, offering a blend of performance and efficiency. Operating at a base frequency of 3.2 GHz with the capability to boost up to 4.6 GHz using Turbo Clock, this processor ensures smooth and responsive performance across various applications. With a base clock of 100 MHz and a 32.0x multiplier, the i7-8700 operates efficiently within a thermal design power (TDP) of 65W. Based on Intel’s Coffee Lake architecture and built using a 14 nm process size, the i7-8700 supports DDR4 memory with a rated speed of 2666 MT/s and dual-channel memory bus, although it does not support ECC memory.

Availability: In Stock
SKU:i7-8700
Brand:

i7-8700 Technical Specifications

Intel Core i7 6-Core 3.20GHz 12MB L3 Cache Socket 1151 Processor

Manufacturer: Intel
Brand: Intel
Performance
Frequency: 3.2 GHz
Turbo Clock: up to 4.6 GHz
Base Clock: 100 MHz
Multiplier: 32.0x
Multiplier Unlocked: No
TDP: 65 W
Architecture
Codename: Coffee Lake
Generation: Core i7
Memory Support: DDR4
Rated Speed: 2666 MT/s
Memory Bus: Dual-channel
ECC Memory: No
Processor
Market: Desktop
Cache
Cache L1: 64 KB (per core)
Cache L2: 256 KB (per core)
Cache L3: 12 MB (shared)
Physical
Socket: Intel Socket 1151
Foundry: Intel
Process Size: 14 nm
Die Size: 154 mm²
tCaseMax: 72°C
