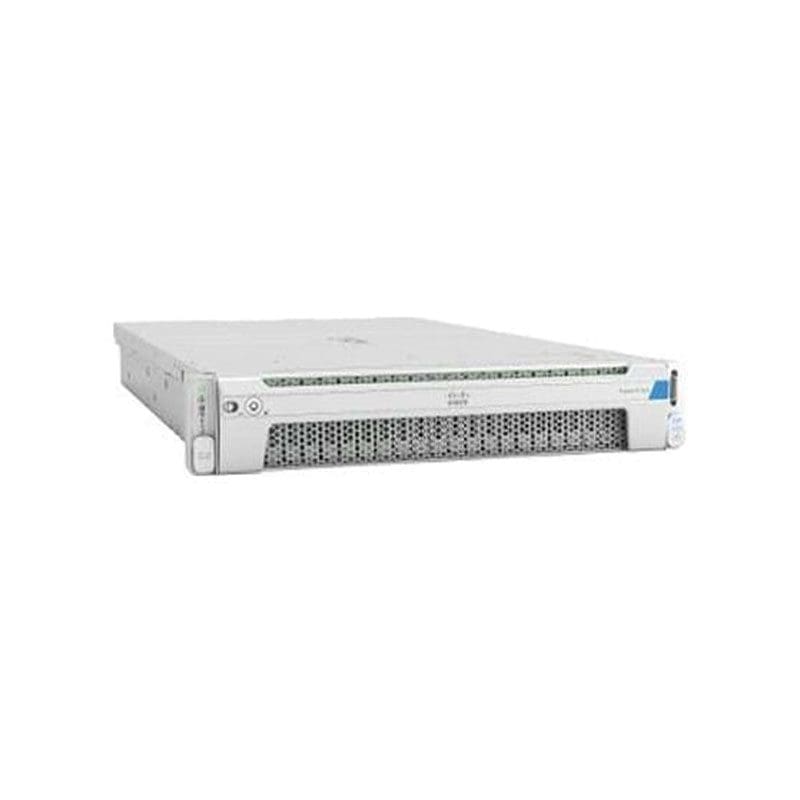

HXAF-SP-240M5SX-P1 Technical Specifications
Cisco Hyperflex System HX240c M5 All Flash
Bay Provided
Form Factor :2.5″ SFF
Total Qty :24
Total Qty :24
Cache Memory
Installed Size :44 MB
Installed Size :44
Per Processor Size :22 MB
Per Processor Size :22
Type :L3 cache
Chassis
Form Factor :Rack-mountable
Ethernet Technology: 40 Gigabit Ethernet
Hot-Swap Bays Qty :24 Bays
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SATA/SAS
Dimensions & Weight
Depth :29.1 in
Height :3.4 in
Width :17.6 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :8 – 90% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :50 °F
Sound Emission :43 dBA
Expansion Bays
Form Factor (metric) :6.4 cm SFF
Type :Hot-swap
Type :Internal
Expansion Slots
Type :M.2 Card
Type :microSD Card
Type :mLOM
Type :PCIe
Hard Drive
Installed Qty :1
SSD Form Factor :M.2
Type :SSD
Header
Brand :Cisco
Manufacturer :Cisco Unified Computing
Model :HX240c M5 All Flash
Packaged Quantity :1
Product Line :Cisco Hyperflex System
Interface Provided
Connector Type :DB-15
Qty :1
Type :VGA
Connector Type :QSFP
Type :LAN (40 Gigabit Ethernet)
Connector Type :RJ-45
Type :Serial
Location :1 in front
Type :KVM
Qty :2
Type :LAN (Gigabit Ethernet)
Type :Management
Type :USB 3.0
Miscellaneous
Color Category :Silver
Compliant Standards :ACPI 4.0, AS/NZS 60950-1, AS/NZS CISPR 22, AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, CNS13438:2006, EN 300386, EN 55032 Class A, EN 60950-1 Second Edition, EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15 A, GB4943.1-2001, ICES-003 Class A, IEC 60950-1 Second Edition, KN22, KN24, KN32 Class A, KN35, UL 60950-1 Second Edition, VCCI Class A
Height (Rack Units) :2U Rack Mount
Included Accessories :26 x SFF drive blanking panel, 32 GB microSD card, Bezel, Cisco Ball Bearing Rail Kit, Mini Storage carrier for M.2 SATA/NVME (holds up to 2)
Networking
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller(s) :Cisco UCS Virtual Interface Card 1387, Intel X550
Ethernet Ports :2 x Gigabit Ethernet, 2 x QSFP
Remote Management Controller :Cisco Integrated Management Controller
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Power Device
Installed Qty :2
Max Supported Qty :2
Power Provided :1600 Watt
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Type :Power supply – hot-plug
Printer
Type :None
Processor
Clock Speed :2.1 GHz
Installed Qty :2
Manufacturer :Intel
Max Supported Qty :2
Number of Cores :16-core
Processor Number :6130
Type :Xeon Gold
RAM
Configuration Features :12 x 32 GB
Data Integrity Check :ECC
Empty Slots :12
Features :Dual rank
Form Factor :DIMM 288-pin
Installed Size :384 GB
Installed Size :384
Max Supported Size :3 TB
Max Supported Size :3
