HX240C-M4SX Technical Specifications

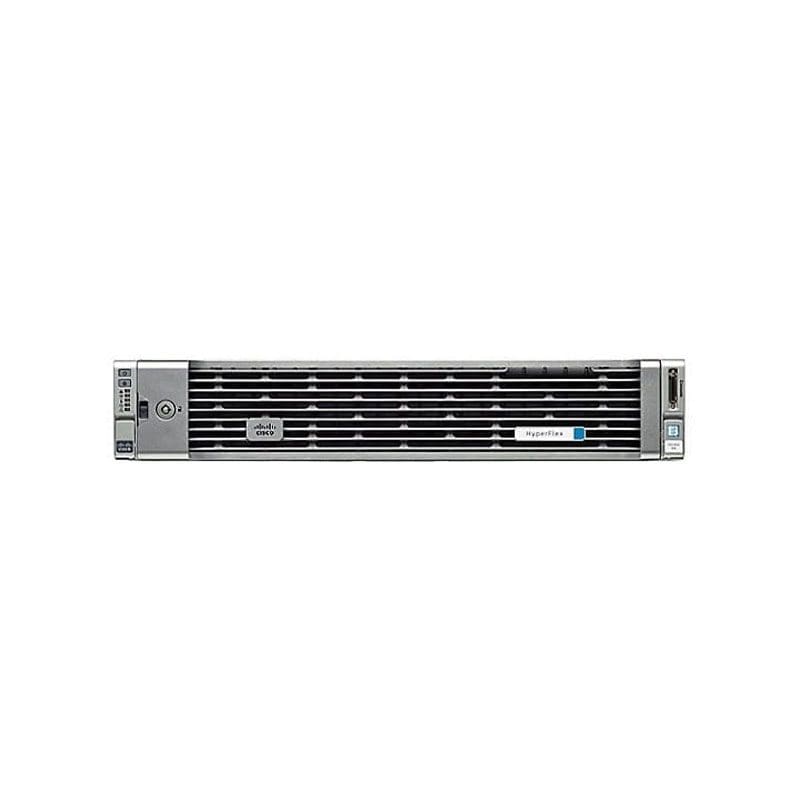

Cisco Hyperflex System HX240c M4 – rack-mountable
Bay Provided
Form Factor :2.5″ SFF
Total Qty :24 Bays
Chassis
Form Factor :Rack-mountable
Hot-Swap Bays Qty :24
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SAS
Cluster
RAID Level :JBOD
Dimensions & Weight
Depth :29.1 in
Height :3.4 in
Width :17.6 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 90% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :41 °F
Expansion Bays
Form Factor (metric) :6.4 cm SFF
Type :Hot-swap
Expansion Slots
Type :CPU
Type :DIMM 288-pin
Type :PCIe
Type :SD card (internal)
Hard Drive
Type :No HDD
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing
Model :HX240c M4
Packaged Quantity :1
Product Line :Cisco Hyperflex System
Interface Provided
Connector Type :RJ-45
Type :Serial
Location :1 in front
Type :KVM
Qty :1
Type :VGA
Qty :2
Type :LAN (Gigabit Ethernet)
Type :Management
Type :USB 3.0
Mainboard
Chipset Type :Intel C612
Miscellaneous
Color Category :Silver
Compliant Standards :AS/NZS 60950-1, AS/NZS CISPR 22, CAN/CSA C22.2 No. 60950-1 Second Edition, CISPR 22 Class A, CISPR 24, CNS13438:2006, EN 300386, EN 60950-1 Second Edition, EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15 A, GB4943.1-2001, ICES-003 Class A, IEC 60950-1 Second Edition, KN22, KN24, UL 60950-1 Second Edition, VCCI Class A
Height (Rack Units) :2
Included Accessories :Bezel, Blanking panel
Modem
Type :None
Networking
Data Link Protocol :Gigabit Ethernet
Ethernet Controller(s) :2 x Intel I350
Ethernet Ports :2 x Gigabit Ethernet
Features :PXE support
Remote Management Controller :Cisco Integrated Management Controller
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Power Device
Max Supported Qty :2
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Type :Power supply – hot-plug
Printer
Type :None
Processor
Installed Qty :2
Manufacturer :Intel
Max Supported Qty :2
Type :Xeon
RAM
Form Factor :DIMM 288-pin
Slots Qty :24
Slot Provided
Free Qty :2
Total Qty :2
Total Qty :24
Total Qty :6
Storage Removable
Type :None
System
Hard Drive Capacity :0 GB
Type :Server
Video Memory
Installed Size :8 MB
Installed Size :8
