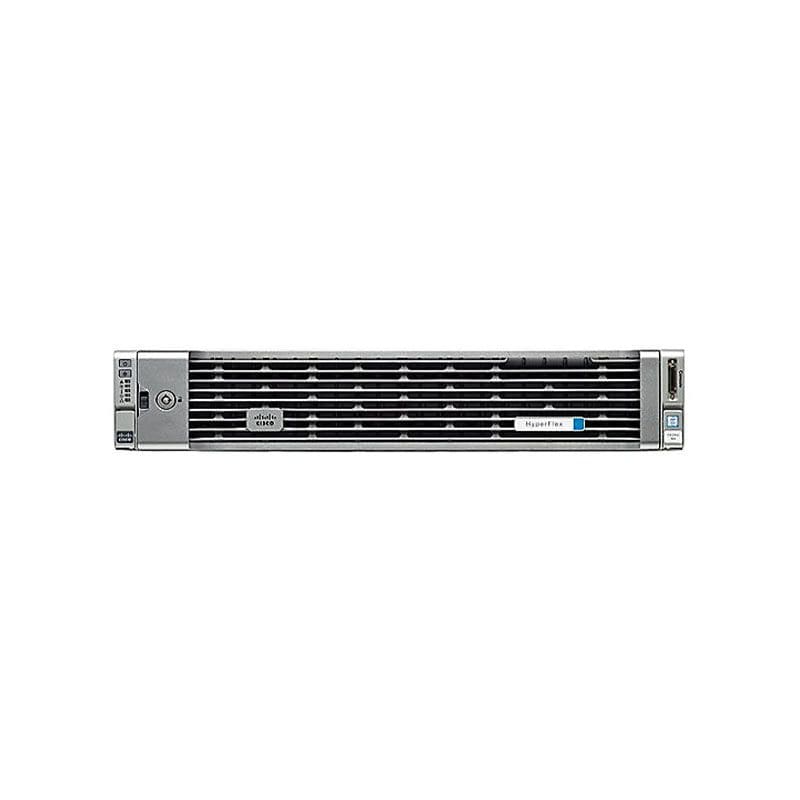

HX-UC-C240M4SX Technical Specifications
Cisco Systems Not Sold Standalone HX240C M4SX
General Information
Product Name Not Sold Standalone HX240C M4SX TRC1 UC
Manufacturer Part Number HX-UC-C240M4SX
Product Line HyperFlex
Product Series HX240c M4
Product Type Server
Controllers
Controller Type 12Gb/s SAS
RAID Supported No
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity Up to 8 MB
I/O Expansions
Number of Total Expansion 24 Bays
Number of Internal 2.5″ Bays 24
Hot Swap Bays Yes
Memory
Standard Memory 256 GB
Maximum Memory 1.50 TB
Memory Technology DDR4 SDRAM
Number of Total Memory Slots 24 DDR4 Slots
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Number of Power Supplies Supported 2
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon
Processor Speed 2.60 GHz
Physical Characteristics
Form Factor Rack
Rack Height 2U Rack Mount
Height 3.4″
Width 19″
Depth 30.2″
