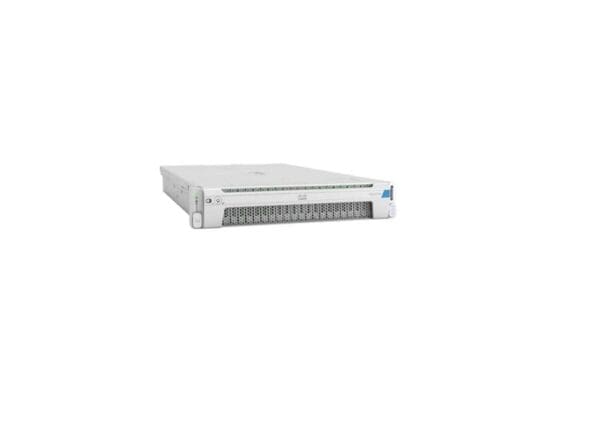

HX-SP-240M5SX-V1 Technical Specifications
Cisco Systems SP HX240C Hyperflex System
General Information
Product Name SP HX240C Hyperflex System 2X4114 12X32GMEM
Manufacturer Part Number HX-SP-240M5SX-V1
Product Line HyperFlex
Product Series HX240c M5
Product Type Server
Controllers
Controller Type 12Gb/s SAS
RAID Supported No
Display & Graphics
Graphics Controller Manufacturer ASPEED
Graphics Controller Model Pilot 4
Graphics Memory Capacity Up to 16 MB
I/O Expansions
Number of Total Expansion Bays 26
Number of Internal 2.5″ Bays 26
Hot Swappable Bays Yes
Memory
Standard Memory 384 GB
Maximum Memory 3 TB
Memory Technology DDR4 SDRAM
Number of Total Memory 24 DDR4 Slots
Number of Occupied Memory Slots 12
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Power Description
Number of Power Supplies Supported 2
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 1600 W
Redundant Power Supply Yes
Storage
Total Solid State Drive Capacity 240 GB
Solid State Drive Interface M.2
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon Silver
Processor Model 4114
Processor Core Deca-core (10 Core)
Processor Speed 2.20 GHz
Physical Characteristics
Form Factor Rack
Rack Height 2U Rack Mount
Height 3.4″
Width 19″
