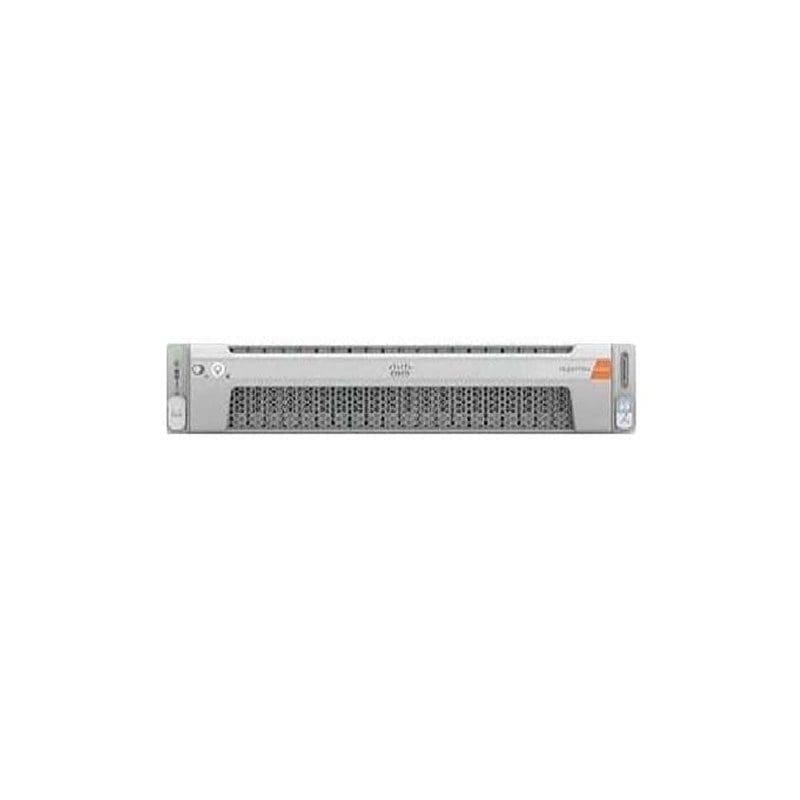

HX-SP-240M5SX-P Technical Specifications
Cisco Systems SP HX240C Hyperfle System
General Information
Product Name SP HX240C Hyperfle System 2X6140 12X32 Gmem
Manufacturer Part Number HX-SP-240M5SX-P
Product Line HyperFlex
Product Series HX240c M5
Product Type Server
Controllers
Controller Type 12Gb/s SAS
RAID Supported No
Display & Graphics
Graphics Controller Manufacturer ASPEED
Graphics Controller Model Pilot 4
Graphics Memory Capacity Up to 16 MB
I/O Expansions
Number of Total Expansion 26 Bays
Number of Internal 2.5″ Bays 26
Hot Swap Bays Yes
Memory
Standard Memory 512 GB
Maximum Memory 3 TB
Memory Technology DDR4 SDRAM
Number of Total Memory Slots 24 DDR4 Slots
Number of Occupied Memory Slots 16
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Number of Power Supplies Supported 2
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon Gold
Processor Model 6140
Processor Core Octadeca-core (18 Core)
Processor Speed 2.30 GHz
Physical Characteristics
Form Factor Rack
Rack Height 2U Rack Mount
Height 3.4″
Width 19″
Depth 30.2″
