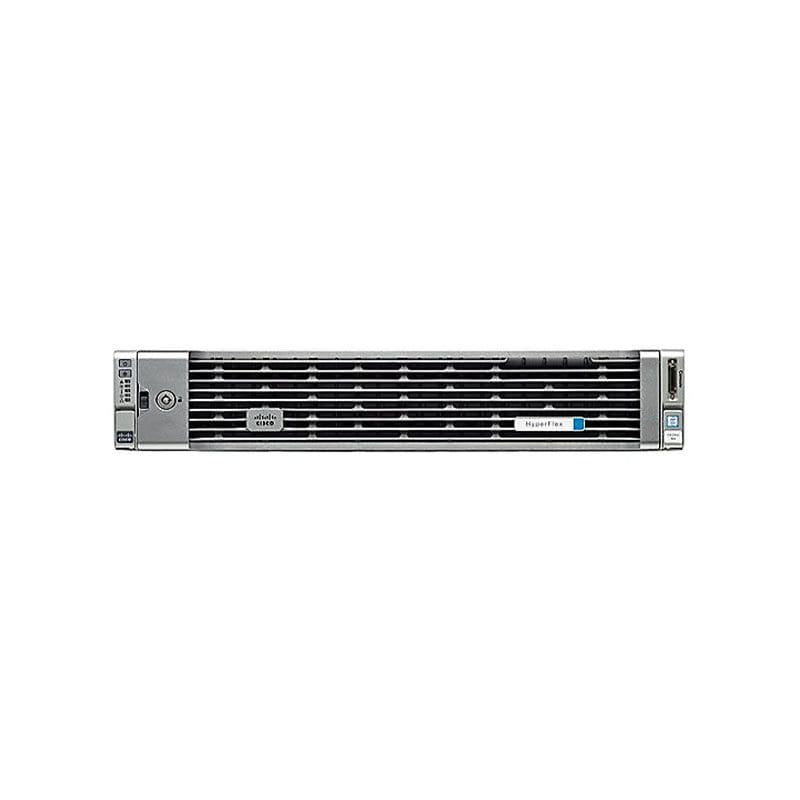

HX-SP-240M4SXE1-5A Technical Specifications
Cisco Systems Ucs SP HX240C Hyperflex System
General Information
Product Name Ucs SP HX240C Hyperflex System with 2XE5263
Manufacturer Part Number HX-SP-240M4SXE1-5A
Product Line HyperFlex
Product Series HX240c M4
Product Type Server
Controllers
Controller Type 12Gb/s SAS
RAID Supported No
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity Up to 8 MB
Memory
Standard Memory 256 GB
Maximum Memory 1.50 TB
Memory Technology DDR4 SDRAM
Memory Slots: 24 x DDR4 RAM Slots
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Intel Xeon
Processor Model E5-2630v3
Processor Core Octa-core (8 Core)
Processor Speed 2.40 GHz
Physical Characteristics
Form Factor Rack
Rack Height 2U Rack Mount
Height 3.4″
Width 19″
Depth 30.2″
