HX-SP-220M4SBE1-5A Technical Specifications

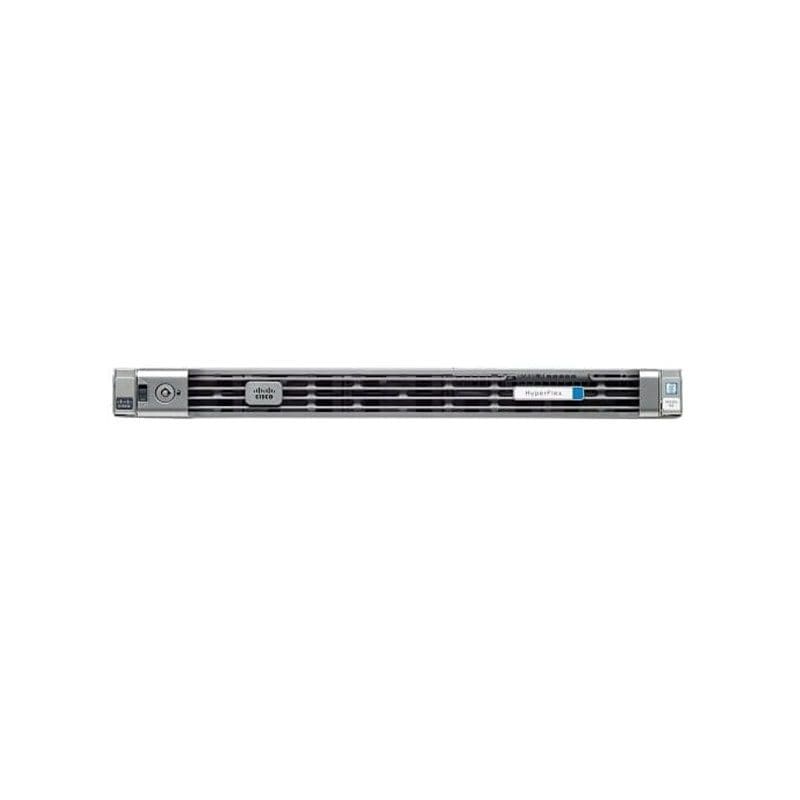

Cisco UCS Smart HX220c Hyperflex System
Bay Provided
Form Factor :2.5″ SFF
Free Qty :0
Total Qty :8 Bays
Cable
Connectivity Details Type :10GBASE-CU SFP+ Cable
Cable Details
Qty :2
Cache Memory
Installed Size :40 MB
Installed Size :40
Per Processor Size :20 MB
Per Processor Size :20
Chassis
Form Factor :Rack-mountable
Hot-Swap Bays Qty :8
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SAS
Dimensions & Weight
Depth :29.8 in
Height :1.7 in
Width :16.9 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 90% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :41 °F
Expansion Bays
Form Factor (metric) :6.4 cm SFF
Type :Hot-swap
Expansion Slots
Size :Half-length, low-profile
Size :Three-quarter-length, full-height
Type :PCIe 3.0 x24
Type :CPU
Type :DIMM 288-pin
Type :PCIe
Type :SD card (internal)
Hard Drive
Installed Qty :1
Interface Class :Serial ATA
SSD Form Factor :2.5″
Type :SSD
Hard Drive (2nd)
Capacity :120 GB
Installed Qty :1
Interface Class :Serial ATA
Interface Type :Serial ATA-600
SSD Form Factor :2.5″
Type :SSD
Hard Drive (3rd)
Capacity :1.2 TB
Installed Qty :6
Interface Type :Serial Attached SCSI 3
Removable :Hot-swap
Spindle Speed :10000 rpm
Type :HDD
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing
Model :Smart Play Select HX220c Hyperflex System
Packaged Quantity :1
Product Line :Cisco UCS
