HX-SP-220M4S-BP1 Technical Specifications

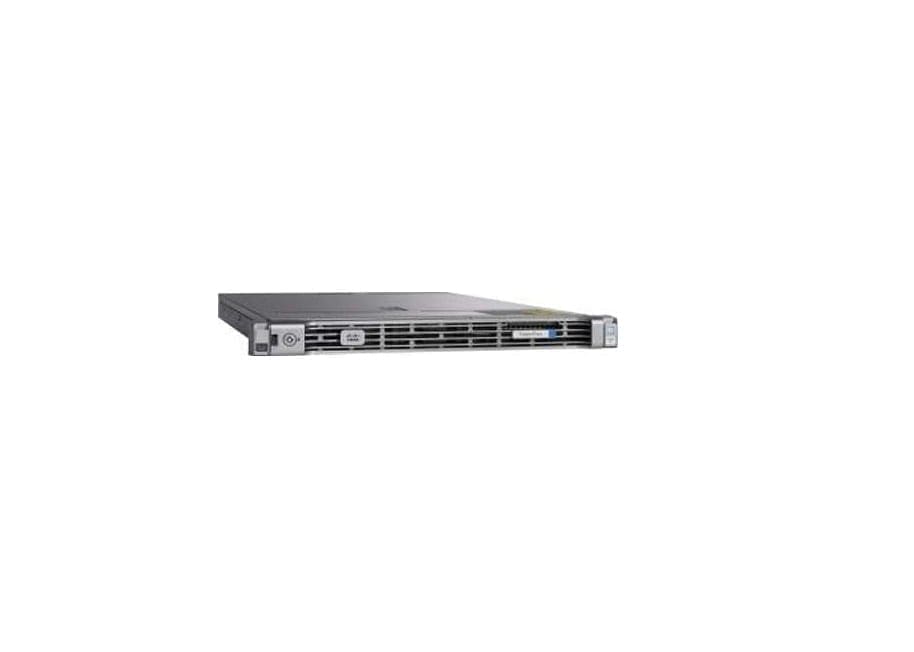

Cisco Systems Ucs SP HX220C with 2XE52690
General Information
Product Name Ucs SP HX220C with 2XE52690 V4 16X32 Gmem
Manufacturer Part Number HX-SP-220M4S-BP1
Product Line HyperFlex
Product Series HX220c M4
Product Type Server
Cisco UCS
Controllers
Controller Type 12Gb/s SAS
RAID Supported No
Cisco UCS
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity Up to 8 MB
I/O Expansions
Number of Total Expansion 8 Bays
Number of Internal 2.5″ Bays 8
Hot Swap Bays Yes
Memory
Standard Memory 512 GB
Maximum Memory 1.50 TB
Memory Technology DDR4 SDRAM
Number of Total Memory Slots 24 DDR4 Slots
Number of Occupied Memory Slots 16
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Number of Power Supplies Supported 2
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 770 W
Redundant Power Supply Yes
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon
Processor Model E5-2690v4
Processor Core Tetradeca-core (14 Core)
Processor Speed 2.60 GHz
