HX-SP-220M4S-BE1 Technical Specifications

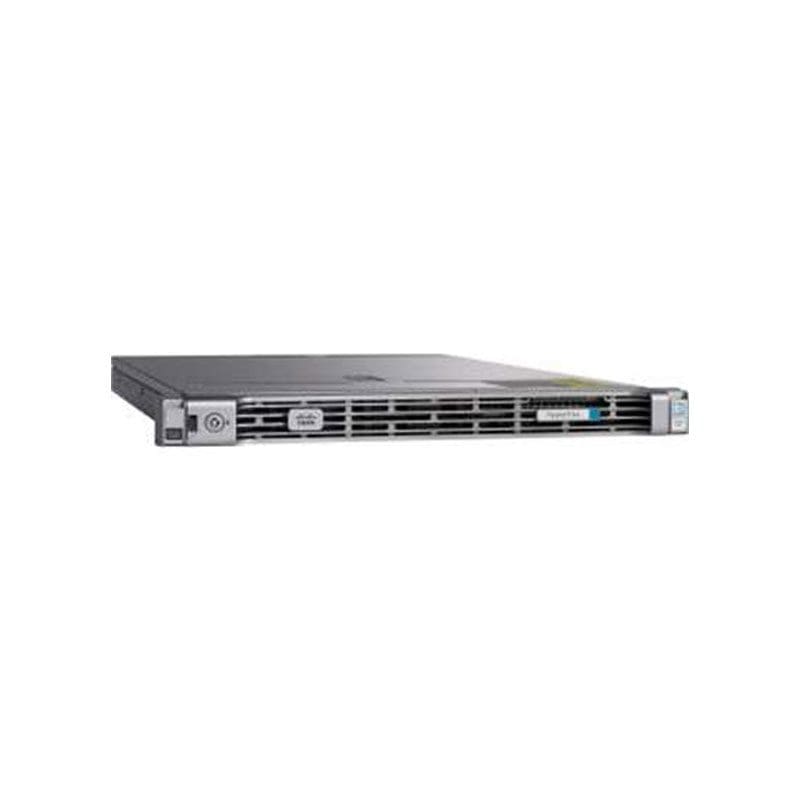

Cisco Systems Ucs SP HX220C Hyperflex System
General Information
Product Name Ucs SP HX220C Hyperflex System 2XE52609V4
Manufacturer Part Number HX-SP-220M4S-BE1
Product Line HyperFlex
Product Series HX220c M4
Product Type Server
Controllers
Controller Type 12Gb/s SAS
RAID Supported No
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity Up to 8 MB
I/O Expansions
Number of Total Expansion 8 Bays
Number of Internal 2.5″ Bays 8
Hot Swappable Bays Yes
Memory
Standard Memory 128 GB
Maximum Memory 1.50 TB
Memory Technology DDR4 SDRAM
Number of Total Memory Slots 24 DDR4 Slots
Number of Occupied Memory Slots 8
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Number of Power Supplies Supported 2
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 770 W
Redundant Power Supply Yes
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Intel Xeon
Processor Model E5-2609v4
Processor Core Octa-core (8 Core)
Processor Speed 1.70 GHz
Physical Characteristics
Form Factor Rack
Rack Height 1U Rack Mount
Height 1.7″
Width 19″
Depth 31″
