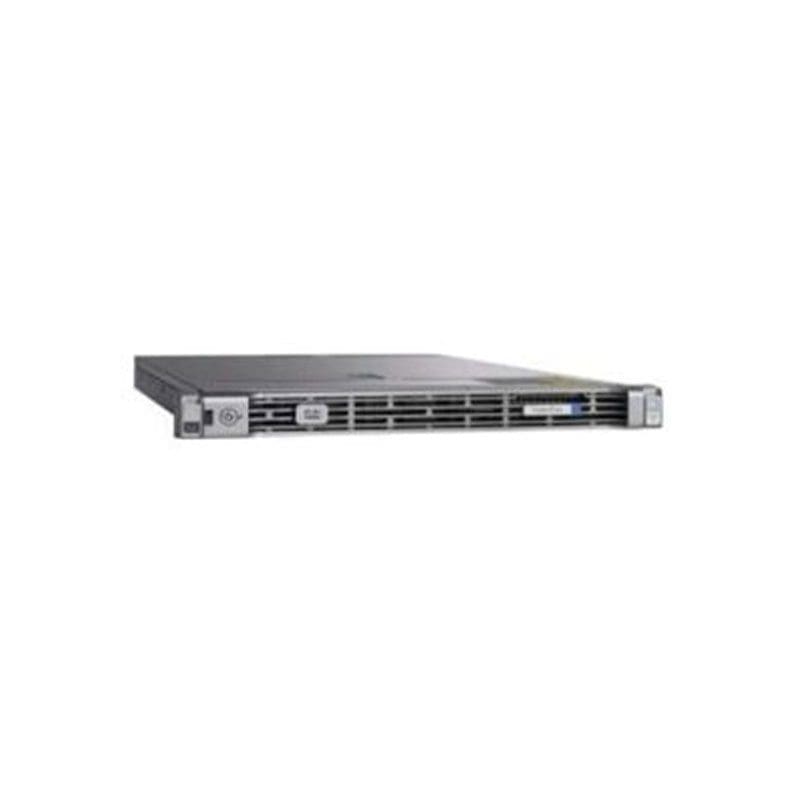

HX-SP-220M4-BR2 Technical Specifications
Cisco Systems Ucs SP HX220C Hyperflex Edge
General Information
Product Name Ucs SP HX220C Hyperflex Edge 2 System
Manufacturer Part Number HX-SP-220M4-BR2
Product Line Cisco Hyperflex System
Product Series HX220c M4
Product Type Server
Controllers
Controller Type 12Gb/s SAS
RAID Supported No
Cisco UCS
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity Up to 8 MB
I/O Expansions
Number of Total Expansion 8 Bays
Number of Internal 2.5″ Bays 8
Hot Swappable Bays Yes
Memory
Standard Memory 128 GB
Maximum Memory 1.50 TB
Memory Technology DDR4 SDRAM
Number of Total Memory Slots 24 DDR4 Slots
Number of Occupied Memory Slots 8
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Number of Power Supplies Supported 2
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 770 W
Redundant Power Supply Yes
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Intel Xeon
Processor Model E5-2630v4
Processor Core Deca-core (10 Core)
Processor Speed 2.20 GHz
Physical Characteristics
Form Factor Rack
Rack Height 1U Rack Mount
Height 1.7″
Width 19″
Depth 31″
