HX-B480-M5-U Technical Specifications

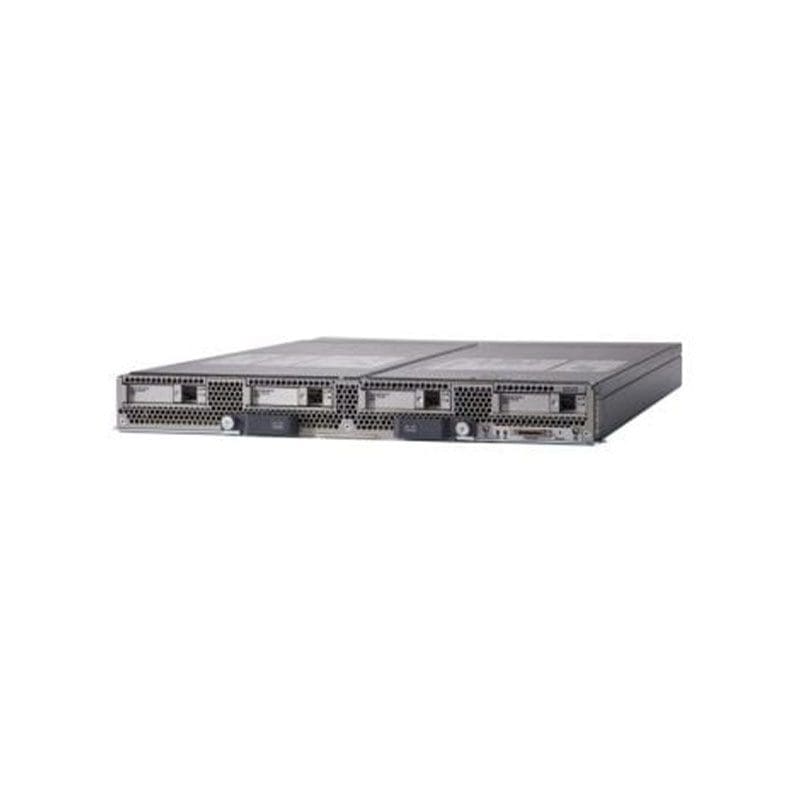

Cisco UCS B480 M5 Blade Server – blade
Bay Provided
Form Factor :2.5″ SFF
Free Qty :4
Total Qty :4 Bays
Card Reader
Supported Flash Memory Cards :SD Memory Card
Chassis
Form Factor :Blade
Front Accessible Bays Qty :4
Hot-Swap Bays Qty :4
Manufacturer Form Factor :Blade Server
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SATA/SAS
Display
Type :None.
Expansion Bays
Form Factor (metric) :6.4 cm SFF
Type :Hot-swap
Expansion Slots
Type :Expansion slot
Type :M.2 Card
Type :mLOM
Type :SD card
Hard Drive
Type :No HDD
Hard Drive (2nd)
Type :None
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Manufacturer :Cisco Unified Computing
Model :B480 M5 Blade Server
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Qty :1
Type :KVM
Miscellaneous
Color Category :Gray
Pricing Type :Upgrade
Networking
Ethernet Controller(s) :Cisco UCS Virtual Interface Card 1340
Remote Management Controller :Cisco Integrated Management Controller
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
OS Provided
Type :No operating system
Printer
Type :None
Processor
Max Supported Qty :4
Server Scalability :4-way
Type :No CPU
Upgradability :Upgradable
RAM
Data Integrity Check :ECC
Empty Slots :48
Form Factor :DIMM 288-pin
Installed Size :0 GB
Installed Size :0
Max Supported Size :6 TB
Max Supported Size :6
Slots Qty :48 DDR4 Slots
Technology :DDR4 SDRAM
