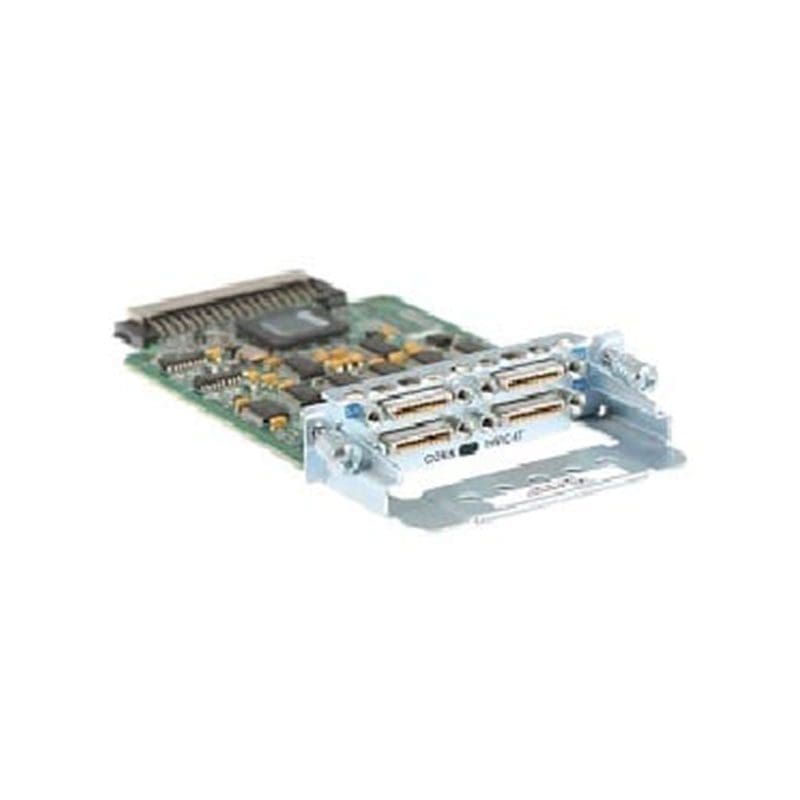

Refurbished HWIC-4T Technical Specification
Cisco High-Speed Expansion Module
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco High-Speed
Packaged Quantity :1
Networking
Type :Expansion module
Form Factor :Plug-in module
Connectivity Technology :Wired
Data Link Protocol :HDLC, PPP, RS-232, RS-449, RS-530, RS-530A, SLIP, V.35, X.21
Data Transfer Rate :8 MBps
Ports
Qty :4
Type :RS-232/449/530/V.35/X.21
Interface Provided
Interfaces :4 x RS-232/449/530/V.35/X.21 – 26 pin Smart Serial
Slot Required
Compatible Slots :1 x expansion slot
Miscellaneous
Compliant Standards :AS/NZ 3548 Class A, CISPR 24, CSA 22.2 No. 950, EN 60950, EN 61000-3-2, EN 61000-3-3, EN50082-1, EN55022 Class A, EN55024, FCC Class A certified, FCC Part 15, ICES-003 Class A, IEC950, TUV GS, UL 1950, VCCI Class A ITE
Dimensions & Weight
Width :3.1 inch
Depth :5.6 inch
Height :0.8 inch
