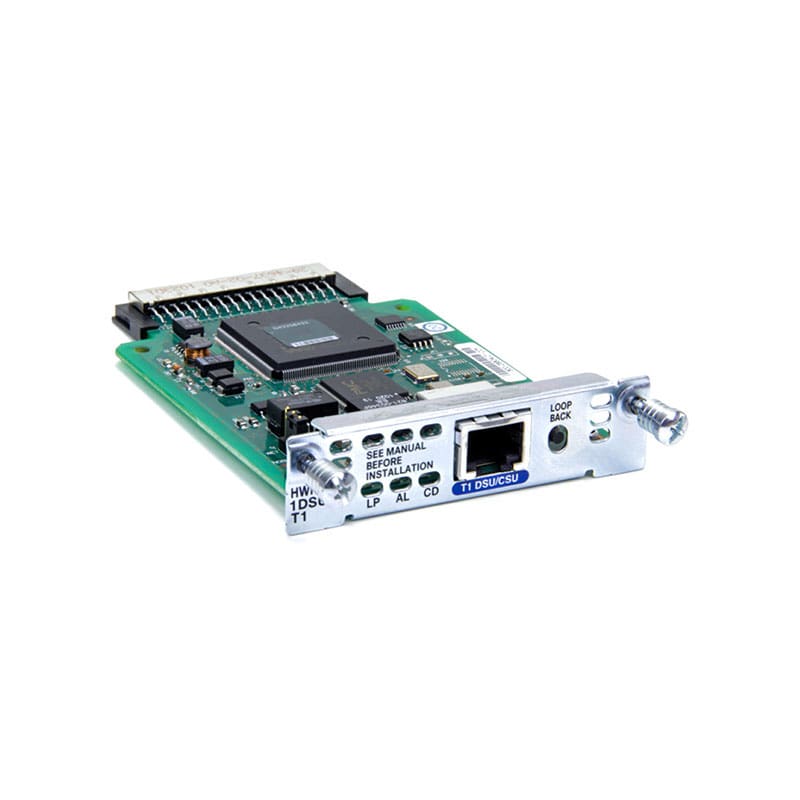

HWIC-1DSU-T1 Technical Specification
Cisco Wan Interface Card Ethernet One-Port
Brand: Cisco
Product Line: Cisco
Manufacturer: CISCO DS HARDWARE DIRECT
Modem
Bus: HWIC
Modem Transmission Data Rate: 1.544 MBps
Expansion Slots
Compatible Slots Required: 1 x HWIC
Connectivity
Interface Provided: 1 x modem – T1 – RJ-48
Technical Information
Ethernet Technology: Wired
Form Factor: Internal
Line Coding Format: AMI, B8ZS
Line Rate: T-1
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 10 – 85%
Product Information
Packaged Quantity: 1
Product Type: DSU/CSU
Dimensions & Weight
Height: 0.8 inch
Width: 3.1 inch
Depth: 5.6 inch
