HWIC-1ADSL Technical Specifications

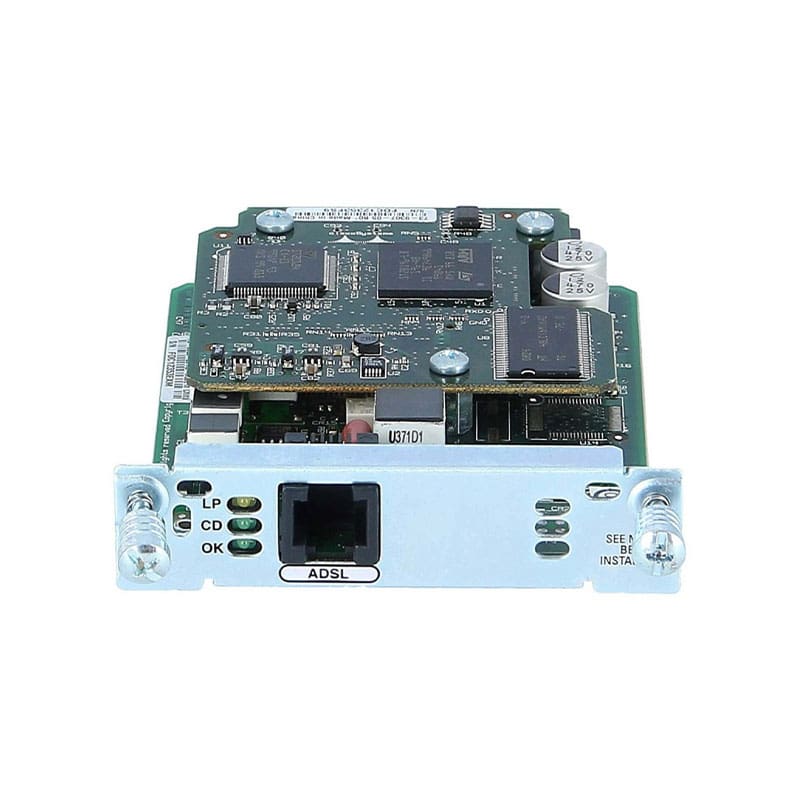

Cisco 1-Port ADSL High-Speed WAN Interface Card HWIC
Manufacturer: Cisco
Brand: Cisco
Product Name: 1-port ADSL High-Speed WAN Interface Card
Product Type: Expansion Module
Interfaces/Ports
Interfaces/Ports: 1 x ADSL WAN
Interfaces/Ports Details: 1 x RJ-11 ADSL WAN
Performance
Connectivity Media: Twisted Pair
Data Transfer Rate: 8 Mbps ADSL Downstream
Data Transfer Rate: 819.20 Kbps ADSL Upstream
Data Transfer Rate: 12 Mbps ADSL2 Downstream
Data Transfer Rate: 1 Mbps ADSL2 Upstream
Data Transfer Rate: 24 Mbps ADSL2+ Downstream
Data Transfer Rate: 1.50 Mbps ADSL2+ Upstream
Dimension and Weight
Height: 0.8 Inch
Width: 3.1 Inch
Depth: 4.7 Inch
Weight: 1 LBS
Management & Protocols
Supports IP quality of service (QoS)
