HHHHC Technical Specifications

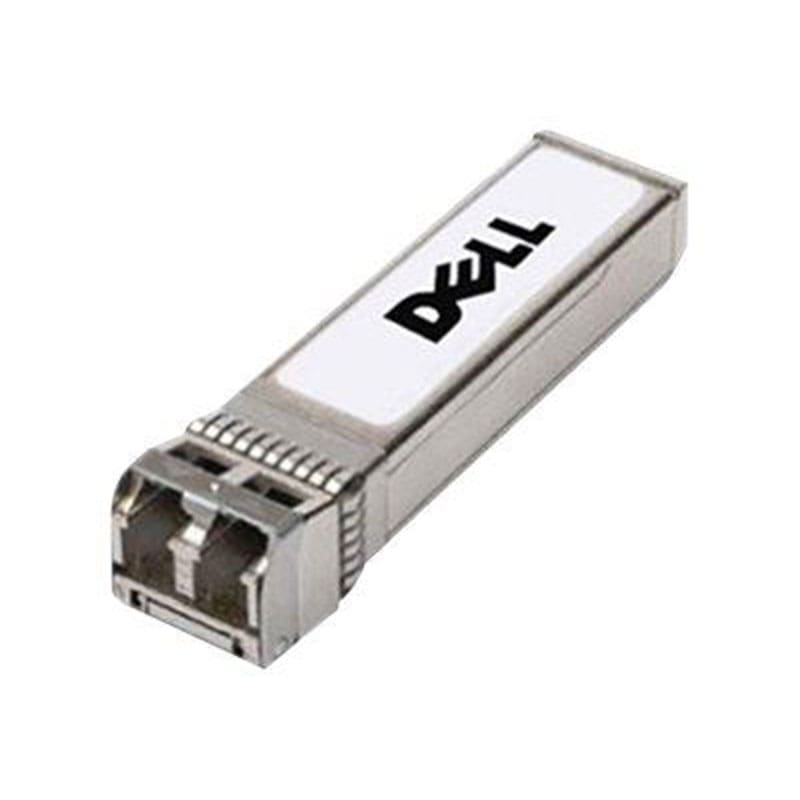

Dell 25GBPS 850NM Short Wavelength SFP+ Transceiver
Manufacture: Dell
Model Number or SKU# HHHHC
Device Type: SFP+ Transceiver
Technical Information for SFP+ Transceiver
Up to 25 Gb/S bi-directional data links
Interface: 25 Gigabit
Hot-Pluggable SFP+ footprint
Built-in digital diagnostic functions
850nm oxide vcsel laser transmitter
Duplex lc connector
Rohs compliant
Performance of 25 Gigabit Transceiver
100m over m5f mmf (50/125 um om4)
70m over m5e mmf (50/125um om3)
20m on mmf (50/125nm om2)
Metal enclosure, for lower emi
1.2w maximum power consumption
Single 3.3v power supply
Operating temperature range: 0°c to 85°c
Applications for Short Wavelength Transceiver
25ge sr
100gge sr4 fan out to 25ge sr
Ecpri
Brand: Dell
Product Condition: New Sealed
