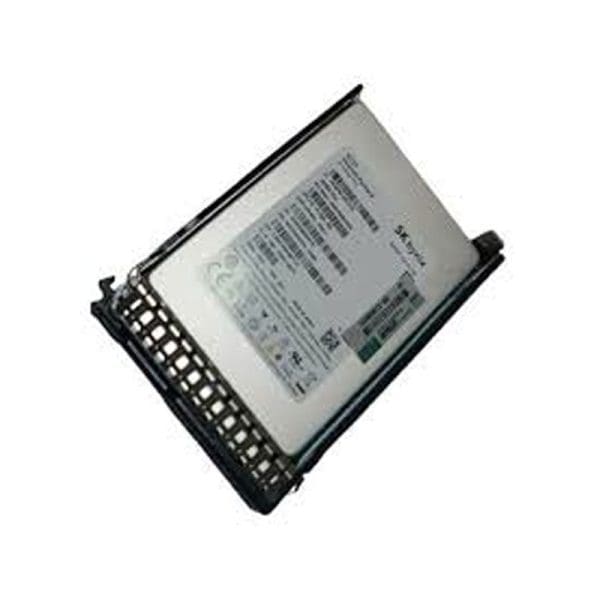

HFS7T6GDUFEH-A430A Technical Specifications
Hynix 7.68TB PCIe NVMe 3.0 x4 Solid State Drive
Manufacturer: Hynix
Product Type: Solid State Drive
Interface: PCI-E Gen3 X4
Technical Information for 7.68TB Solid State Drive
Storage Capacity: 7.68TB
Form Factor: U.2 7mm
Shock: 1500G, duration 0.5ms
Security: AES 256 Bit Encryption
NAND: 3D V4 TLC
Product Series: Pe6011
Performance of PCI-E SSD
Random Read: 610K IOPS
Random Write: 70K IOPS
Sequential Read: 3200 MBPS
Sequential Write: 2450 MBPS
QOS 4KB Random Read: 95?s
QOS 4KB Random Write: 25?s
Dimensions & Weight of NVMe SSD
Height: 0.27 Inch
Width: 2.75 Inch
Depth: 3.94 Inch
Weight: 0.18 Lbs
Power Consumption
Active Read: Up To 10.0 Watt
Active Write: Up To 14.0 Watt
Active Idle: Up To 3.7 Watt
Allowable voltage: 12.0V ± 5%
Operating Temperature: 0-70°C
Endurance
MTBF: 2 million hours
UBER: 1 sector per 10^17 bits read
