HDEPK10GEA51F Technical Specifications

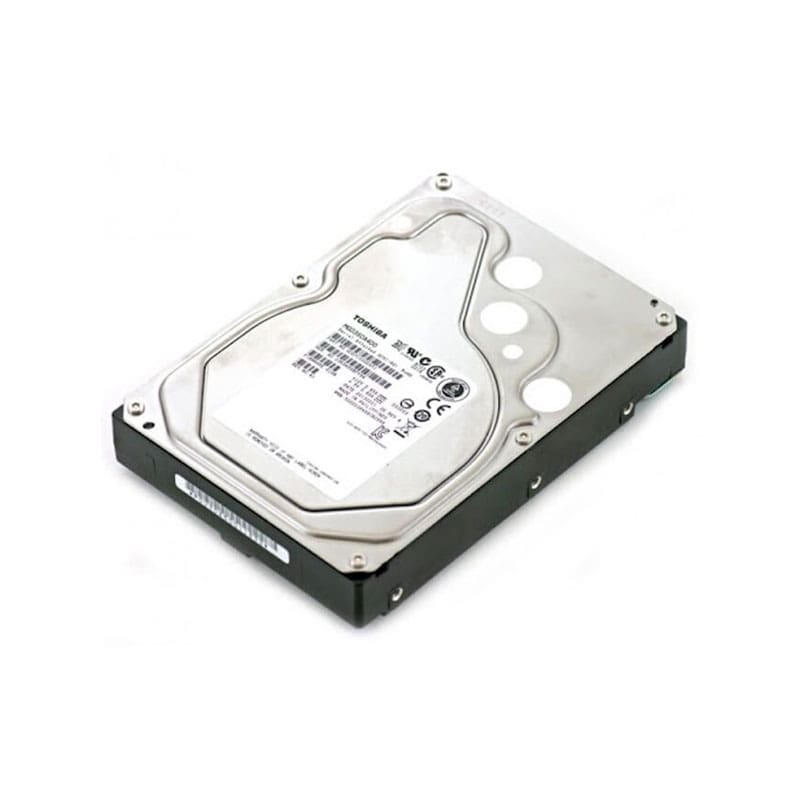

Toshiba 10TB 7200RPM SAS 12Gbps 3.5-inch Hard Drive
Mfr Part Number: HDEPK10GEA51F
Capacity: 10 TB
Rotational Speed: 7200 RPM
Cache: 256 MB
Interface: SAS12.0 Gb/s
Maximum Data Transfer Speed (Sustained): 237 MiB/S (Typical)
SHOCK
Operating: 70G @ 2MS
Non-operating: 250G @ 2MS
Vibration
Operating: 0.75G @ 5 ~ 300Hz / 0.25G @ 300 ~ 500Hz
Non-operating:3.0G @ 5 ~ 500Hz
Acoustics (Sound Power):
Idle: 34 dB (Typical)
Power Consumption
Random Read / Write (4KB Q1): 10.78 W (Typical)
Active Idle: 7.49 W (Typical)
Allowable Voltage: 5V (+10% / -7 %), 12V (+/- 10%)
MTTF: 2,500,000 hours
Form Factor: 3.5 inch
Dimensions (WxLxH): 101.85 x 147.00 x 26.10 mm
