H5-25412-00 Technical Specifications

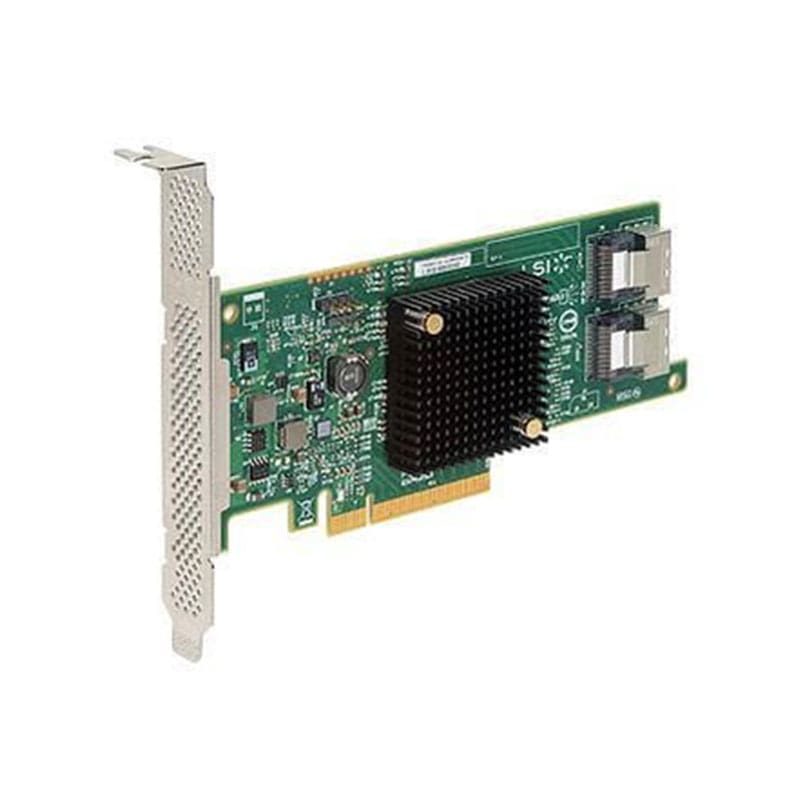

LSI Logic 6GB/S 8-Port INT PCI-E 3.0 SATA SAS Host Bus Adapter With Standard Bracket
Brand: LSI Logic
Model Number or SKU# H5-25412-00
Type: Controller
Sub-Type: SAS-SATA
Technical Information
Product: 8-Port INT 6GB/S SATA+SAS PCIE3.0 HBA & Documentation CD
I/O Controller : LSI SAS2308/ Fusion MPT 2.0
Storage Connectivity Data Transfer Rates : 8 Ports 6GB/S SAS 2.1 Compliant
Port Configurations : 8 EA X1 Ports (Individual Drives) 2 EA X4 Wide Port
Host BUS : X8 Lane PCI Express 3.0 Compliant
PCI Data Burst Transfer Rates : Half Duplex – X8 PCIE 4000 MB/S
Connectors : TWO Mini-SAS Internal Connectors (SFF8087)
Brackets : Full Height And Low Profile
Cable Support : Passive Copper
PCI Card Type : 3.3 V Add-In Card
