GX43-102510-000 Technical Specifications

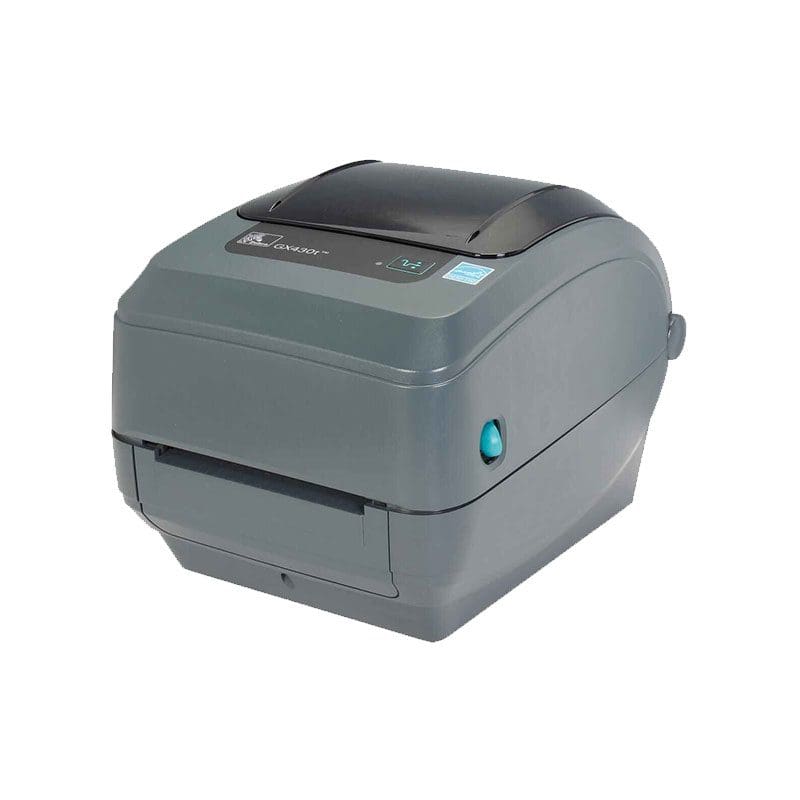

Zebra GX Series GX430t Label printer B/W Direct Thermal
Manufacturer
Zebra Technologies
Brand
Zebra
Product Line
Zebra GX Series
Model
GX430t
Office Machine
Type
Printer
Functions
Printer
Printing Technology
Direct thermal / thermal transfer
Printing Output Type
Monochrome
RAM
Technology
SDRAM
Installed Size
8 megabyte
Flash Memory
Installed Size
4 megabyte, 4 megabyte
Max Supported Size
68 megabyte, 68 megabyte
Label Printer
Roll Maximum Outer Diameter
5 inch
Roll Core Diameter
0.5 in, 1 in, 1.5 in
Printer
Type
Label printer
Connectivity Technology
Wired
Min H-Document Size
0.75 in
Min V-Document Size
0.38 in
Max H-Document Size
4.25 in
Max V-Document Size
39 in
Max Printing Width
4.09 inch
Max Printing Length
39 inch
Media Type
Continuous forms, Fanfold paper, Labels, Tag stock
Media Sizes
Roll (0.75 in), Roll (4.25 in)
Media Thickness Range
0.003 in – 0.0079 in
Language Simulation
EPL2, ZPL, ZPL II
Printing
Max Resolution B/W
300 dpi
Max Printing Speed B/W
240.9 Inches per minute
Printer Output
Print Speed
Up to 240.9 inch/min – B/W – 300 dpi
Printer Media
Media Feeders
1 x manual – 1 roll – Roll (4.25 in)
Scanner
Type
None
Printer Fonts
Fonts Included
1 x scalable, 21 x bitmapped
Barcode
Barcodes
Aztec code, Codabar, CODABLOCK, Code 11, Code 128, Code 128A, Code 128B, Code 128C, Code 39, Code 49, Code 93, Data Matrix, EAN/JAN, EAN/JAN-13, EAN/JAN-8, EAN-14, German Post, Industrial 2 of 5, Interleaved 2 of 5, Japanese Post, LOGMARS, MacroPDF417, MaxiCode, MicroPDF417, MSI-3, MSI-Plessey, PDF417, Postnet, QR code, Standard 2 of 5, UCC/EAN-128, UPC, UPC-A, UPC-E
Networking
Type
None
Document & Media Handling
Media Type Class
Other
Media Size Class
Other
Max Media Size
Roll (4.25 in)
Connectivity
Interface
Parallel, Serial, USB
Interface Required
Connections
1 x parallel – 36 pin Centronics, 1 x RS-232 – 9 pin D-Sub (DB-9), 1 x USB
Cable Details
Cables Included
1 x USB cable – 6 ft
Software
Type
Drivers & Utilities
Power Device
Type
Power supply
Nominal Voltage
AC 120/230 V
Frequency Required
50/60 hertz
Power Factor Correction
Yes
Battery
Form Factor
None
Miscellaneous
Microsoft Certification
Compatible with Windows 7
Compliant Standards
AAMI, CB, CCC, C-Tick, EN 61000-3-2, EN 61000-3-3, EN55022 Class B, EN55024, FCC Part 15, IRAM, NOM, TUV, VCCI
Dimensions & Weight
Width
7.6 inch
Depth
10 inch
Height
7.5 inch
Weight
4.63 lbs
Dimensions & Weight (Shipping)
Shipping Weight
9.04 lbs
Environmental Parameters
Min Operating Temperature
41 degree Fahrenheit
Max Operating Temperature
105.8 degree Fahrenheit
Humidity Range Operating
10 – 90% (n
