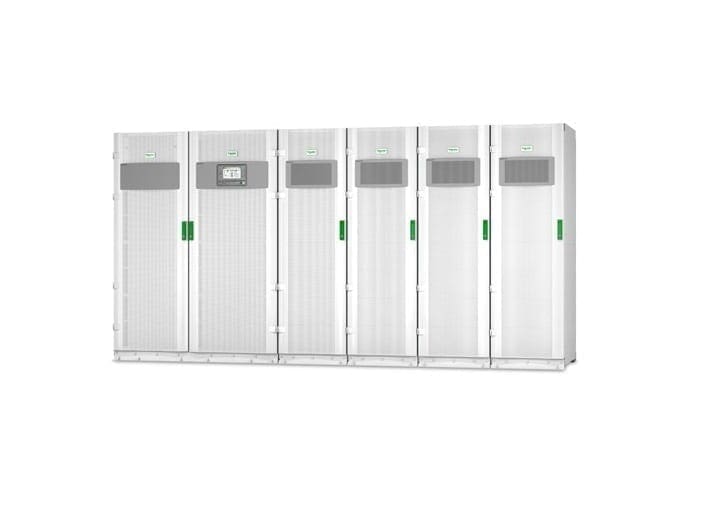

GVX1000K1000HS Galaxy VX 1000kVA, 400V, Start up 5×8

GVX1000K1000HS  Overview

Galaxy VX 1000kVA, 400V, Start up 5×8
Highly efficient, scalable, 3-phase power protection with flexible operating modes and ECOnversion™ for large facilities, data centers, and business critical applications.
Includes: Installation guide, Start-Up Service

$233,000

Buy Now
Availability: In Stock
SKU:GVX1000K1000HS
Brand:

GVX1000K1000HS Technical Specifications

Galaxy VX 1000kVA, 400V, Start up 5×8

Output
Max Configurable Power (Watts)
1.0MWatts / 1.0MVA
Output Frequency (sync to mains)
50 Hz, 60 Hz
Output Frequency (not synced)
50Hz +/- 0.1% for 50Hz nominal
Other Output Voltages
380, 415, 440
Load Crest Factor
3 with THC <5%
Topology
Double Conversion Online
Waveform type
Sine wave
Overload Operation
150% for 1 minute 125% for 10 minutes
Output Voltage THD
< 2% linear load and <3% non-linear load
Input
Input frequency
40 – 70 Hz
Input Total Harmonic Distortion
Less than 3% for full load
Other Input Voltages
380, 415, 440
Maximum Short Circuit Withstand (Icw)
100.0kAmps
Batteries & Runtime
Battery type
No internal battery – uses external battery system
Nominal Battery Voltage
480V
End of Discharge Battery Voltage
384 Vdc
Efficiency
View Efficiency Graph
Communications & Management
Control panel
7″ Touch Screen Display
Audible Alarm
Audible and visible alarms prioritized by severity
Available SmartSlot™ Interface Quantity
2
Physical
Maximum Height
77.56inches (1970MM, 197.0CM)
Maximum Width
153.54inches (3900MM, 390.0CM)
Maximum Depth
35.43inches (900MM, 90.0CM)
Net Weight
6525.69lbs. (2960.0KG)
Shipping weight
10317.64lbs. (4680.0KG)
Shipping Height
84.65inches (2150MM, 215.0CM)
Shipping Width
183.07inches (4650MM, 465.0CM)
Shipping Depth
41.73inches (1060MM, 106.0CM)
Color
White
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 (non-condensing) %
Operating Elevation
0-3333ft (0-999.9meters)
Storage Temperature
-15 – 40 °C
Storage Relative Humidity
0 – 95 (non-condensing) %
Storage Elevation
0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit
69.5dBA
Online thermal dissipation
174332.0BTU/hr
Protection Class
IP 20
Conformance
Approvals
cUL Listed, C-tick, CE, ETL, IBC 2012, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, UL 1778 5th edition
Standard warranty
1 year on-site repair or replace with factory authorized Start-Up
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
Battery Directive
Compliant
Proposition 65 Warning
Available in Documentation tab
Documentation
Manuals and Warranties
Galaxy VX UPS with 1000 kW IO Cabinet 400/480 V Installation
Providing the certified electrician with information on how to install and connect the Galaxy VX UPS.
PDF
22559 KB
03/17/20
Galaxy VX Operation Manual
Contains information on operation, maintenance and troubleshooting for the users of the Galaxy VX system
PDF
4410 KB
03/10/20
Galaxy VX Modbus Register Map
Galaxy VX Modbus Register Map
PDF
133 KB
12/03/19
Galaxy VX Receiving and Unpacking
Providing information on storage conditions and how to unpack the Galaxy VX cabinets and remove them from the pallet
PDF
1828 KB
12/03/19
Catalogs
Galaxy VX 500 to 1500kVA 400V Brochure
Features and benefits, ideal applications, and product specifications
PDF
1322 KB
12/05/19
Design/Configuration
Galaxy VX 380 V, 400 V, 415 V, and 440V Technical Specifications
Contains technical data, facility planning, drawings, options. Go to https://www.productinfo.schneider-electric.com/portals/ui/galaxyvx_iec/ for digital manuals.
