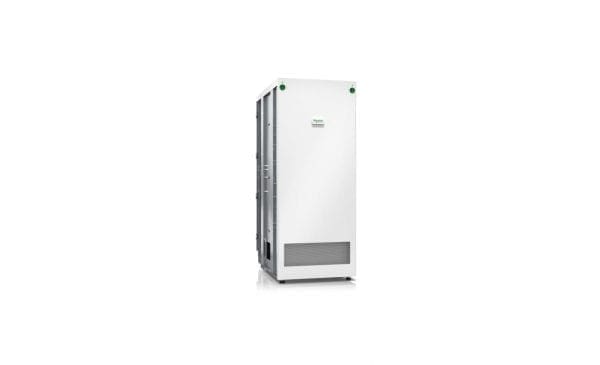

GVSBPIT50 Technical Specifications
Galaxy VS Maintenance Bypass Cabinet with Input Transformer 30-50kW 480V or 600V In, 208V Out\
Physical
Maximum Height
58.46inches (1485MM, 148.5CM)
Maximum Width
23.62inches (600MM, 60.0CM)
Maximum Depth
32.91inches (836MM, 83.6CM)
Net Weight
1168.45lbs. (530.0KG)
Shipping weight
1234.59lbs. (560.0KG)
Shipping Height
65.75inches (1670MM, 167.0CM)
Shipping Width
31.5inches (800MM, 80.0CM)
Shipping Depth
38.98inches (990MM, 99.0CM)
Color
White
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 (non-condensing) %
Storage Temperature
-25 to 55 °C
Storage Relative Humidity
0 – 95 (non-condensing) %
