GVMS225KGF65S Technical Specifications

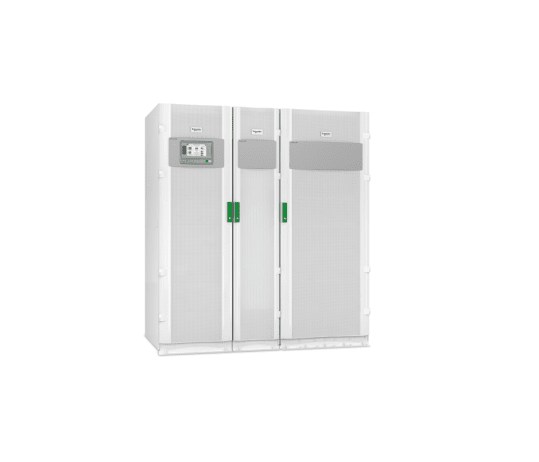

APC Galaxy VM – UPS – 202.5 kW – 225000 VA
Header
Manufacturer :APC
Brand :APC
Product Line :APC Galaxy VM
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x SmartSlot
Power Device
Form Factor :External
UPS Technology :On-line
Voltage Provided :AC 208 volt
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :202.5 kilograms per millimetere
Power Capacity (VA) :225000 volt ampere per kilogram
Voltage Required :AC 480 volt
Input Voltage Range :AC 360 – 576 V
Frequency Required :40 – 70 hertz
Input Wiring :3-phase
Input Connector Type :Hardwire 4-wire (3PH + G)
Input Connector Qty :1
Output Connector Type :Hardwire 4-wire (3PH + G), Hardwire 5-wire (3PH + N + G)
Output Connector Qty :2
Circuit Protection :Circuit breaker
Power Factor (PF) :0.9
Power Device Features :Internal bypass, Audible alarm, 65kAIC breaker
Power Output Connectors Details
Power Output Connectors Details :1 x hardwire 5-wire (3PH + N + G), 1 x hardwire 4-wire (3PH + G)
UPS
UPS Battery :No battery
Miscellaneous
Color :White
Color Category :White
Compliant Standards :EN 62040-3, FCC Part 15 B, OSHPD, IP20, UL 1778, RoHS, IEC 62040-3
Features :Touch screen interface
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :39.4 inch
Depth :33.6 inch
Height :77.6 inch
Weight :1552.04 lbs
