GV-R55XTOC-8GD Technical Specifications

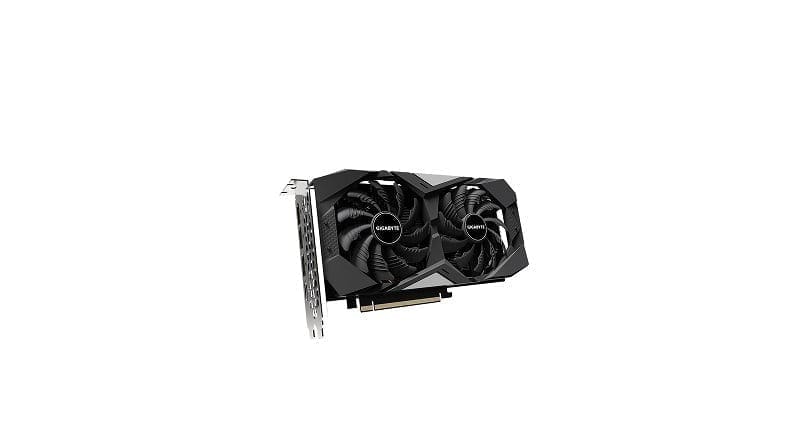

Gigabyte Radeon RX 5500 XT OC Graphics card
GPU
GPU Model AMD Radeon RX 5500 XT
Stream Processors 1408
Boost Clock Speed Gaming Mode: 1733 MHz
OC Mode: 1845 MHz
Interface PCI Express 4.0 x16
Supported APIs DirectX: 12
OpenGL: 4.5
Memory
Memory Speed 14 Gb/s
Memory Configuration 8 GB
Memory Interface GDDR6
Memory Interface Width 128-Bit
Memory Bandwidth 224 GB/s
Display Support
Display Connectors 3 x DisplayPort 1.4
1 x HDMI 2.0b
Maximum Digital Resolution 7680 x 4320 @ 60 Hz
Power Requirements
PCI Power Connectors 1 x 8-Pin
Recommended System Power Requirement 450 W
Dimensions
Height 4.69″ / 119.00 mm
Length 8.86″ / 225.00 mm
Width Dual-Slot
