GV-N2070WF2-8GD REV3.0 Technical Specifications

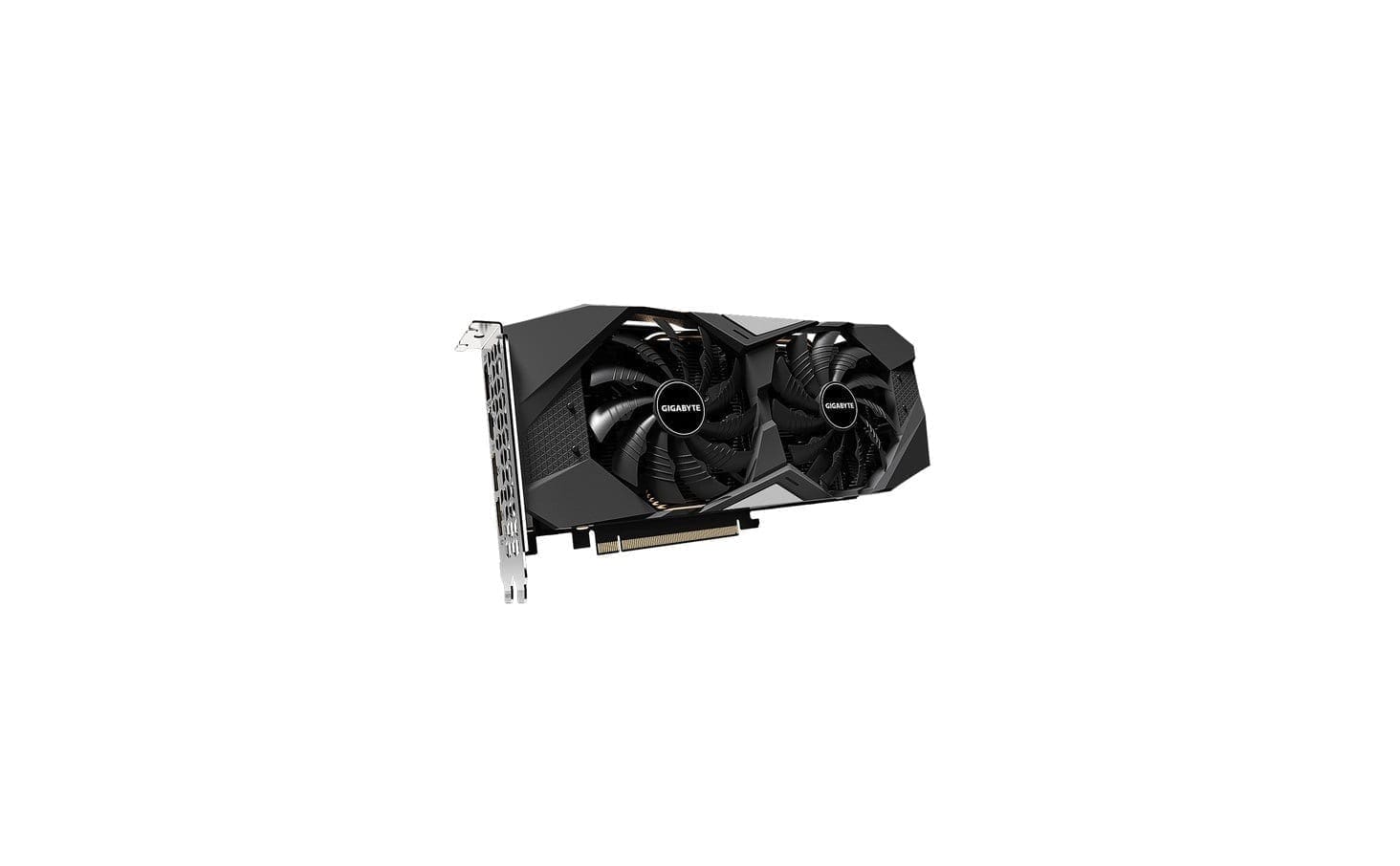

Gigabyte GeForce RTX 2070 WINDFORCE 2X Graphics Card
GPU
GPU Model NVIDIA GeForce RTX 2070
Stream Processors 2304 CUDA Cores
Boost Clock Speed 1620 MHz
Interface PCI Express 3.0 x16
Supported APIs DirectX: 12
OpenGL: 4.6
Memory
Memory Speed 14 Gb/s
Memory Configuration 8 GB
Memory Interface GDDR6
Memory Interface Width 256-Bit
Memory Bandwidth 448 GB/s
Display Support
Display Connectors 3 x DisplayPort 1.4
1 x HDMI 2.0b
Maximum Digital Resolution 7680 x 4320 @ 240 Hz
Power Requirements
PCI Power Connectors 1 x 8-Pin
Recommended System Power Requirement 550 W
Dimensions
Height 10.43″ / 264.9 mm
Length 4.75″ / 120.58 mm
Width Dual-Slot
