GV-N2060IXOC-6GD REV2.0 Technical Specifications

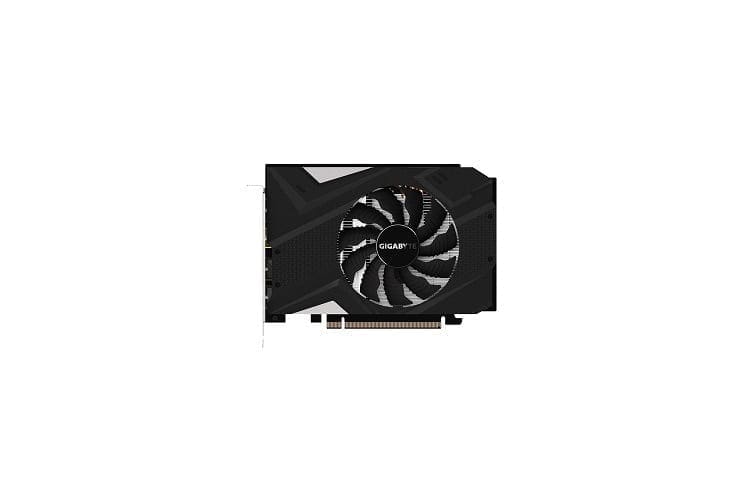

Gigabyte GeForce RTX 2060 MINI ITX OC Graphics Card
GPU
GPU Model NVIDIA GeForce RTX 2060
Stream Processors 1920 CUDA Cores
Boost Clock Speed 1695 MHz
Interface PCI Express 3.0 x16
Supported APIs DirectX: 12
OpenGL: 4.6
Memory
Memory Speed 14 Gb/s
Memory Configuration 6 GB
Memory Interface GDDR6
Memory Interface Width 192-Bit
Memory Bandwidth 336 GB/s
Display Support
Display Connectors 3 x DisplayPort 1.4
1 x HDMI 2.0b
Maximum Digital Resolution 7680 x 4320 @ 60 Hz
Power Requirements
PCI Power Connectors 1 x 8-Pin
Recommended System Power Requirement 500 W
Dimensions
Height 4.78″ / 121.3 mm
Length 6.69″ / 170.00 mm
Width Dual-Slot
