GV-N166TOC-6GD Technical Specifications

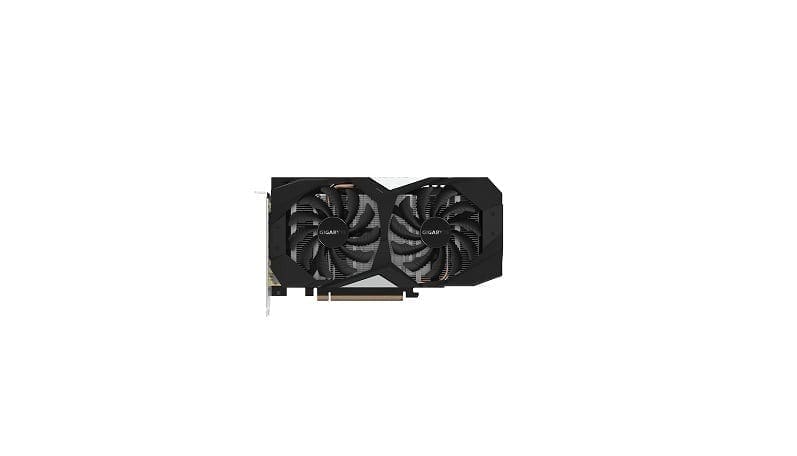

Gigabyte GeForce GTX 1660 Ti OC Graphics Card
GPU
GPU Model NVIDIA GeForce GTX 1660 Ti
Stream Processors 1536 CUDA Cores
Boost Clock Speed 1800 MHz
Interface PCI Express 3.0 x16
Supported APIs DirectX: 12
OpenGL: 4.6
Memory
Memory Speed 12 Gb/s
Memory Configuration 6 GB
Memory Interface GDDR6
Memory Interface Width 192-Bit
Memory Bandwidth 288 GB/s
Display Support
Display Connectors 3 x DisplayPort 1.4
1 x HDMI 2.0b
Maximum Digital Resolution 7680 x 4320 @ 60 Hz
Power Requirements
PCI Power Connectors 1 x 8-Pin
Recommended System Power Requirement 450 W
Dimensions
Height 4.80″ / 122.02 mm
Length 8.88″ / 225.65 mm
Width Dual-Slot
General
Cooler Type Open Fansink
