GV-N166SOC-6GD Technical Specifications

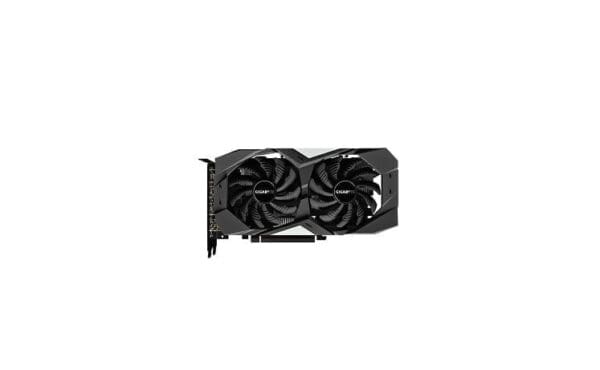

Gigabyte GeForce GTX 1660 SUPER OC Graphics Card
GPU
GPU Model NVIDIA GeForce GTX 1660 SUPER
Stream Processors 1408 CUDA Cores
Boost Clock Speed 1830 MHz
Interface PCI Express 3.0 x16
Supported APIs DirectX: 12
OpenGL: 4.6
Memory
Memory Speed 14 Gb/s
Memory Configuration 6 GB
Memory Interface GDDR6
Memory Interface Width 192-Bit
Memory Bandwidth 336 GB/s
Display Support
Display Connectors 3 x DisplayPort 1.4
1 x HDMI 2.0b
Maximum Digital Resolution 7680 x 4320 @ 60 Hz
Power Requirements
PCI Power Connectors 1 x 8-Pin
Recommended System Power Requirement 450 W
Dimensions
Height 4.80″ / 122.02 mm
Length 8.88″ / 225.65 mm
Width Dual-Slot
General
Cooler Type Open Fansink
