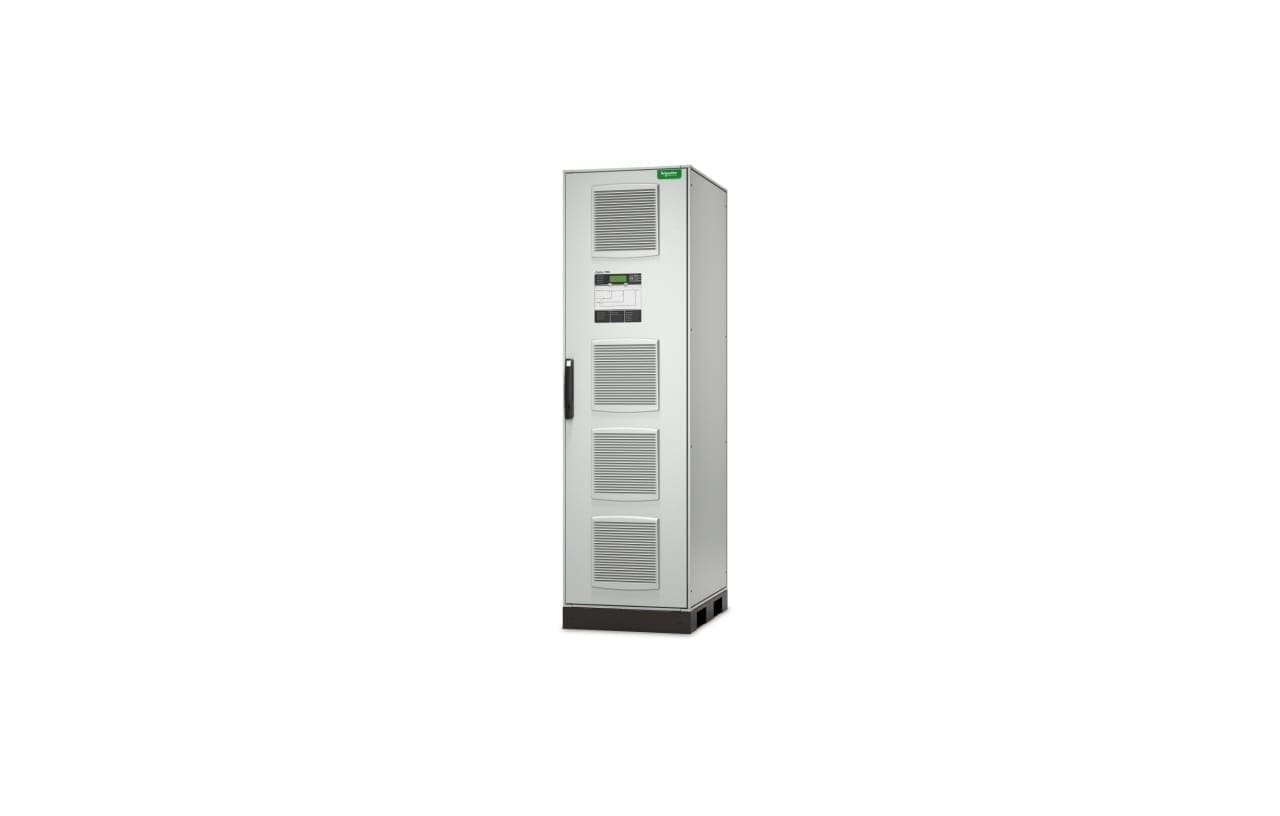

GUPXC37LFIS Technical Specifications
GUTOR PXC UL 37.5kVA, 600/208V ISO Transformer Single Feed, Start Up
Output
Max Configurable Power (Watts)
37.5kWatts / 37.5kVA
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
60 Hz
Output Frequency (not synced)
60Hz +/- 0.1% for 60Hz nominal
Load Crest Factor
3 : 1
Waveform type
Sine wave
Overload Operation
150% for 1 minute 125% for 10 minutes
Output Voltage THD
< 2% for 0 to 100% linear load and < 5% for full non linear load
Bypass
Built-in Bypass
Input
Input frequency
60 Hz
Input Total Harmonic Distortion
Less than 5% for full load
Maximum Short Circuit Withstand (Icw)
50.0kAmps
Batteries & Runtime
Battery type
No internal battery – uses external battery system
Communications & Management
Pre-Installed SmartSlot™ Cards
AP9635
Control panel
Multi-function LCD status and control console
Audible Alarm
Audible and visible alarms prioritized by severity
Available SmartSlot™ Interface Quantity
1
Physical
Maximum Height
82.68inches (2100MM, 210.0CM)
Maximum Width
23.62inches (600MM, 60.0CM)
Maximum Depth
31.5inches (800MM, 80.0CM)
Net Weight
1589.53lbs. (721.0KG)
Shipping weight
1589.53lbs. (721.0KG)
Shipping Height
82.68inches (2100MM, 210.0CM)
Shipping Width
23.62inches (600MM, 60.0CM)
Shipping Depth
31.5inches (800MM, 80.0CM)
Color
Light grey
