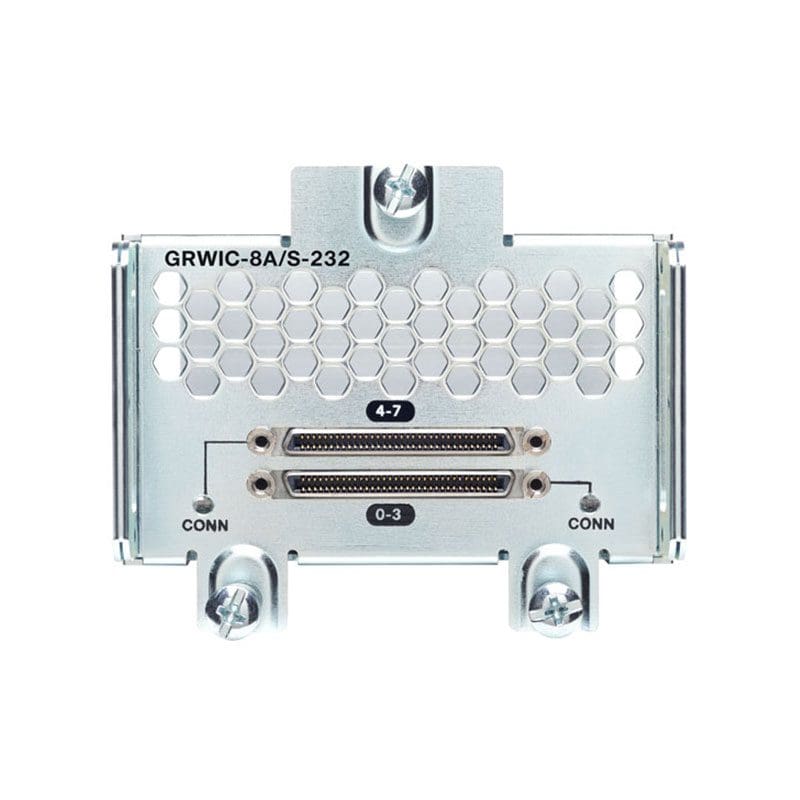

Refurbished GRWIC-8A/S-232 Technical Specification
Cisco 8-port Serial GRWIC
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco
Model :8-port Asynchronous/Synchronous Serial GRWIC for the Cisco 2010 Connected Grid Router
Packaged Quantity :1
Networking
Type :Serial adapter
Form Factor :Plug-in module
Interface (Bus) Type :GRWIC
Connectivity Technology :Wired
Data Link Protocol :RS-232
Data Transfer Rate :256 Kbps
Ports
Qty :2
Type :RS-232
Interface Provided
Interfaces :2 x RS-232
Slot Required
Compatible Slots :1 x GRWIC
Miscellaneous
Compliant Standards :AS/NZ 3548 Class A, AS/NZS 60950-1, BSMI CNS 13438, CISPR 22 Class A, CISPR 24, CS-03, CSA C22.2 No. 60950-1, EN 300 386, EN 60950-1, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-2, EN300-386, EN50082-1, EN55022 Class A, EN55024, ICES-003 Class A, IEC 60950-1, JATE, UL 60950-1, VCCI
Dimensions & Weight
Width :29.9 inch
Depth :7.8 inch
Height :2.5 inch
Weight :13.4 ounce
Environmental Parameters
Min Operating Temperature :-40 degree Fahrenheit
Max Operating Temperature :140 degree Fahrenheit
Humidity Range Operating :5 – 95% (non-condensing)
