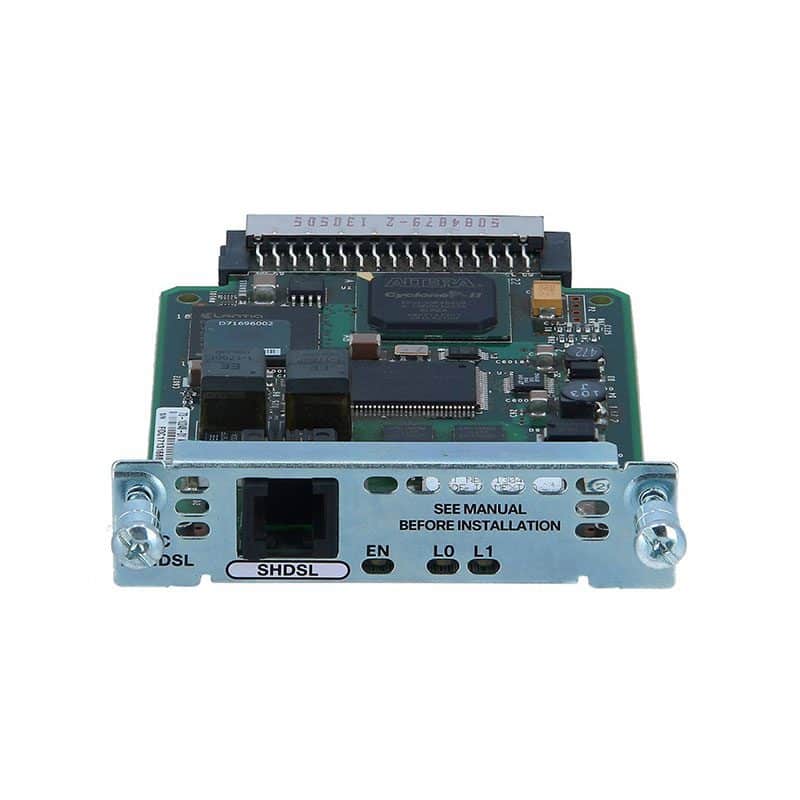

Refurbished GRWIC-2SHDSL Technical Specification
Cisco Connected Grid G.SHDSL
General
Device Type DSL modem
Form Factor Internal
Modem
Bus GRWIC
Connectivity Technology Wired
Processor Broadcom
Digital Signaling Protocol SHDSL
Protocols & Specifications ITU G.991.2 (G.shdsl), ITU G.991.2 (G.shdsl) Annex B
Expansion / Connectivity
Interfaces 1 x SHDSL – RJ-11
Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 24, EN55024, EN50082-1, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, CS-03, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 3548 Class A, VCCI V-3, TBR4, TBR13, CNS 13438, CSA 22.2 No. 60950-1, IEC 61850-3, EN 55022 Class A, EN 300 386
Pricing Type Remanufactured
Dimensions & Weight
Width 3.3 in
Depth 8.5 in
Height 2 in
Weight 14.11 oz
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 85%
Compatibility Information
Designed For Cisco 2010, 2010 Connected Gri
