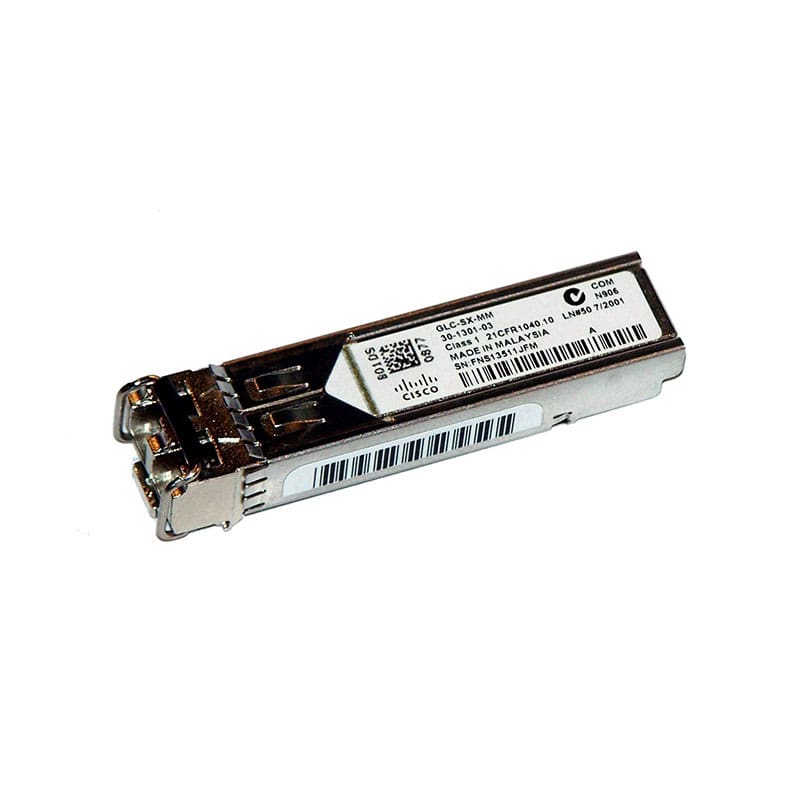

GLC-SX-MM Technical Specifications
Cisco – SFP (mini-GBIC) transceiver module – GigE
Network & Communication
Cable Type: Ethernet 1000Base-SX
Compliant Standards: IEEE 802.3ah, IEEE 802.3z
Connectivity Technology: Wired
Data Link Protocols: Gigabit Ethernet
Data Transfer Rate: 1 GBps
Features
Digital Optical Monitoring (DOM) support, Hot swap module replacement
Form Factor: Plug-in module
Max Transfer Distance: 0.6 miles
Optical Wave Length: 850 nm
Product Type: SFP (mini-GBIC) transceiver module
Connectivity
Interface Provided: 1 x Ethernet 1000Base-SX – LC/PC multi-mode x 2
Cables
Left Connector SD Type: LC/PC multi-mode
Technical Information
Max Operating Temperature: 185 degree Fahrenheit
Min Operating Temperature: 23 degree Fahrenheit
Product Information
Packaged Quantity: 1
Dimensions & Weight
Height: 0.3 inch
Weight: 2.65 ounce
Width: 0.5 inch
Depth: 2.2 inch
Certifications & Listings
Compliant Standards
IEC 60825-1, Laser Class 1
ENERGY STAR Certified: No
