GLC-LH-SM Technical Specifications

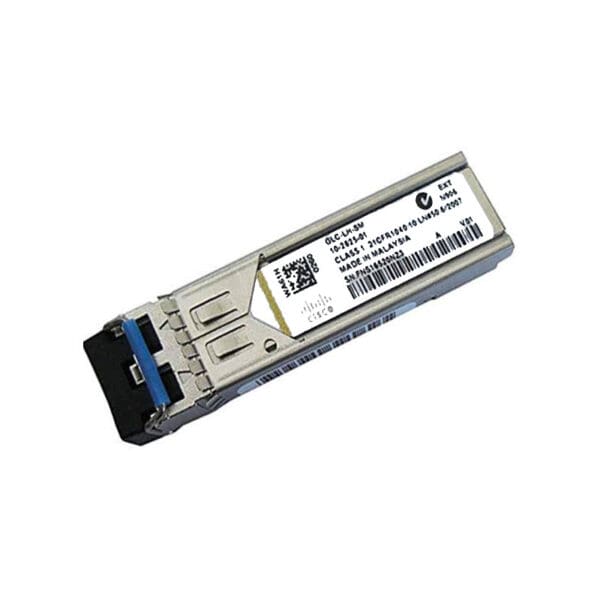

Cisco 1Gbps 1000Base-LX/LH Single-Mode Fiber 10km 1310nm Duplex LC Connector SFP Transceiver Module
General Information
Brand Name Cisco
Product Type SFP (mini-GBIC)
Technical Information
Application/Usage Data Networking
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Interfaces/Ports Details 1 x 1000Base-LX/LH
Media & Performance
Media Type Supported Optical Fiber
Fiber Optic Cable Standard 9/10 µm
62.5 µm
50 µm
Fiber Mode Supported Single-mode Fiber (SMF)
Physical Characteristics
Form Factor Hot swap
Height 0.3″
Width 0.5″
Depth 2.2″
Max. Data Rate: 1.25Gbps
Wavelength: 1310nm
Max. Cable Distance: 10km@SMF
Connector Duplex: LC
Media: SMF
Transmitter Type: FP
Receiver Type: PIN
DDM/DOM: Supported
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
TX Power: -9.5 ~ -3dBm
Protocols: IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant
Warranty: 5 Years
