GG8068204236902 Technical Specifications

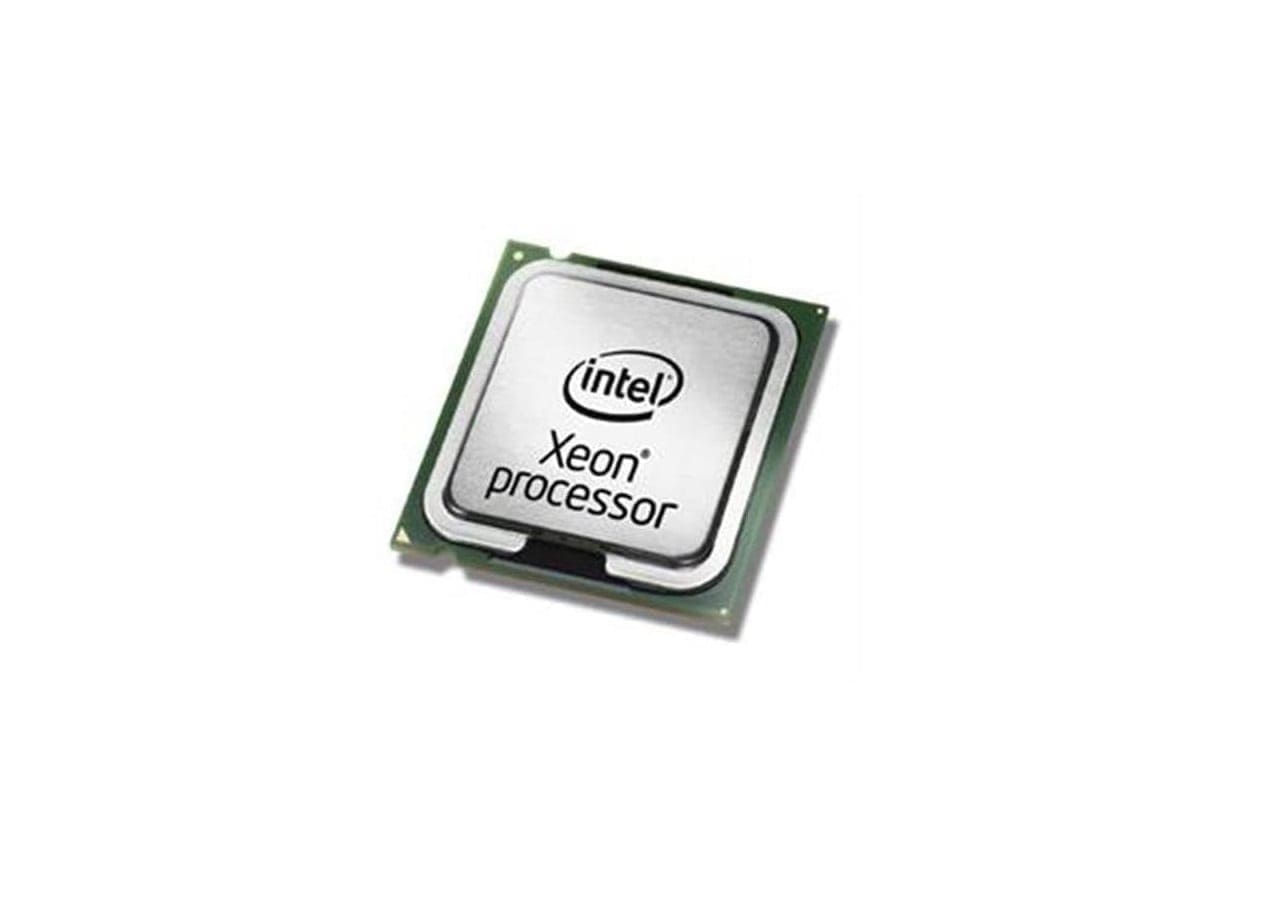

Intel Xeon D-1622 Quad-Core 2.60GHz 6MB L3 Cache Socket FCBGA1667 Processor
Brand Intel
Part No. GG8068204236902
Processor Type Server
Series Xeon D Processor
Core Model Type/ProcNo. D-1622
Processor Code Name Hewitt Lake
Manufacturing Technology 14 nm
# of Cores 4
# of Threads 8
Clock Speed 2.60 GHz
Max Turbo Frequency 3.20 GHz
L3 Cache Size 6 MB
# of QPI Links 0
# of UPI Links 0
Thermal Power 40 Watts
Max Memory Size 128 GB
Memory Types DDR4-2133
Maximum Memory Speed 2133 MHz
Memory Channels 2
ECC Memory Supported Yes
CPU Socket Type BGA1667
Max CPU Configuration 1
TJUNCTION 105 °C
Package Size 37.5mm x 37.5mm
TCASE 83 °C
Embedded Options Available No
Scalability 1S
PCI Express 3.0
PCI Express Configurations x16
x4
x8
Max # of PCI Express Lanes 32
# of USB Ports 8
USB Revision 2.0
Total # of SATA Ports 6
Max # of SATA 6.0 Gb/s Ports 6
Advanced Technologies Enhanced Intel SpeedStep Technology
Idle States
Instruction Set 64-bit
Intel 64
Intel Hyper-Threading Technology
Intel Turbo Boost Technology 2.0
Intel Virtualization Technology (VT-x)
Intel Virtualization Technology for Directed I/O (VT-d)
Thermal Monitoring Technologies
Instruction Set Extensions Intel AVX2
Security & Reliability Execute Disable Bit
Intel AES New Instructions
Intel OS Guard
Intel Trusted Execution Technology
Secure Key
Product Condition OEM
