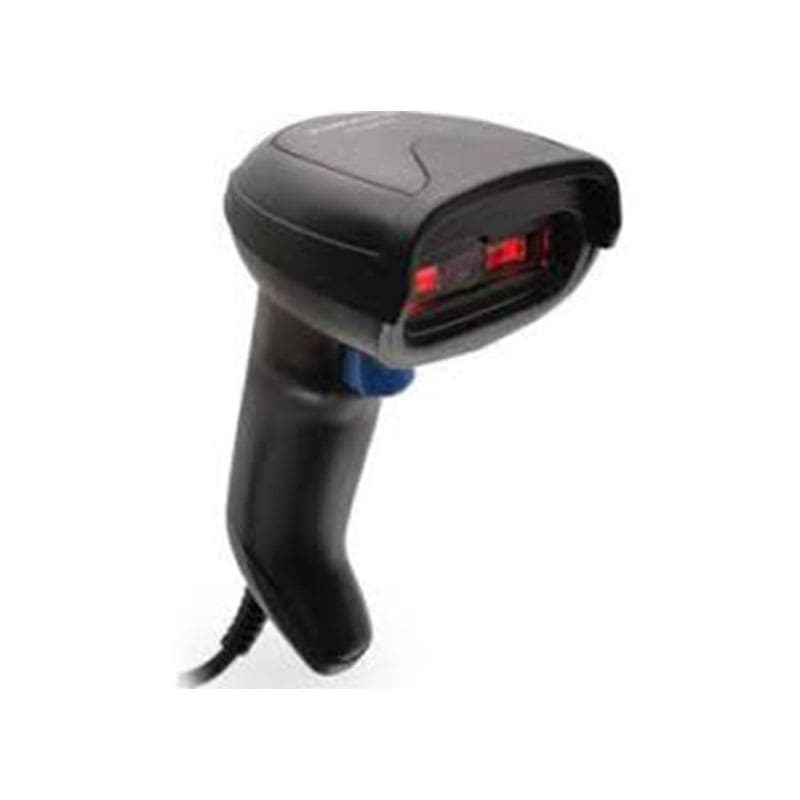

GD4220-BKK1 Technical Specifications
Datalogic ADC Gryphon 1D Black +USB
Brand: Datalogic
Product Line: Datalogic Gryphon I
Model: GD4220
Manufacturer: Datalogic
Connectivity
Connectivity Technology: Wired
Interface Required: 1 x USB, 1 x USB – Type C
Scanning
Barcode Symbology Supported: Code 39, EAN/JAN, GS1 DataBar, UPC
Scan Mode: Single-pass
Scan Rate: 400 scan / sec
Technical Information
Drop Specification: 1.8 m to concrete
Form Factor: Handheld
Image Sensor Type: Linear imager
Interface: USB
Light Source: Dual LED
Light Source Wave Length: 613-630 nm
Max Operating Temperature: 50 degree Celsius
Product Information
Scanner Functionality: Barcode scanner
Max Coverage Angle: 65
OK Notification: Beeper, LED indicator
Packaged Quantity: 1
Dimensions & Weight
Height: 16.6 centimetre
Weight: 163 gram
Width: 6.8 centimetre
Depth: 10.9 centimetre
