G55TUPU100HMS Technical Specifications

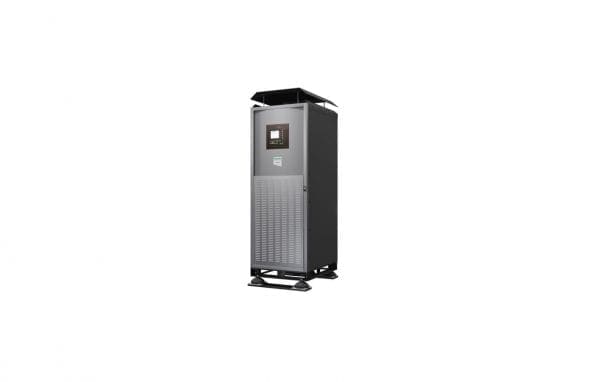

MGE Galaxy 5500 100kVA 400-415V Single UPS Marine IP22 RAL 7035, Start-up 5X8
Output
Max Configurable Power (Watts)
90.0kWatts / 100.0kVA
Neutral Output Current
217A
Output Voltage Note
Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
Efficiency at Full Load
93.0 %
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
50 Hz – programmable +/- 0.5 / 1 / 2 / 4 / 6 / 8%
Output Frequency (not synced)
50Hz +/- 0.1% for 50Hz nominal
Other Output Voltages
380, 415
Load Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform type
Sine wave
Overload Operation
10 minutes @ 125% and 60 seconds @ 150%
Maximum Output Current
480
Output Voltage THD
< 1% linear load and < 2.5% nonlinear load
Output Voltage Tolerance
+/- 2% static and 100% load step
Bypass
Built-in Maintenance Bypass, Built-in Static Bypass, Optional External Bypass
Input
Input frequency
45 – 65 Hz
Input voltage range for main operations
323 – 437 (380V), 340 – 460 (400V), 353 – 477 (415V)V
Efficiency at Full Load
93.0 %
Input Total Harmonic Distortion
Less than 3% for full load
Type of Input Protection Required
gL fuse
Other Input Voltages
380, 400, 415
Maximum Short Circuit Withstand (Icw)
30.0kAmps
Input Power Factor at Full Load
1.0
Batteries & Runtime
Battery type
No internal battery – uses external battery system
Expected Battery Life (years)
8 – 10
Battery Volt-Amp-Hour Capacity
93
Runtime
View Runtime Graph
View Runtime Chart
Communications & Management
Pre-Installed SmartSlot™ Cards
AP9635CH
Control panel
Multi-function LCD status and control console
Emergency Power Off (EPO)
Yes
Available SmartSlot™ Interface Quantity
3
Physical
Maximum Height
87.01inches (2210MM, 221.0CM)
Maximum Width
28.03inches (712MM, 71.2CM)
Maximum Depth
33.66inches (855MM, 85.5CM)
Net Weight
1293.6lbs. (588.0KG)
Shipping weight
1342.0lbs. (610.0KG)
Shipping Height
91.73inches (2330MM, 233.0CM)
Shipping Width
42.52inches (1080MM, 108.0CM)
Shipping Depth
47.24inches (1200MM, 120.0CM)
Units per Pallet
1.0
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 %
Operating Elevation
0-3333ft (0-999.9meters)
Storage Temperature
-20 – 45 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0-40000ft (0-12000meters)
Audible noise at 1 meter from surface of unit
63.0dBA
Protection Class
IP 32, IP20
