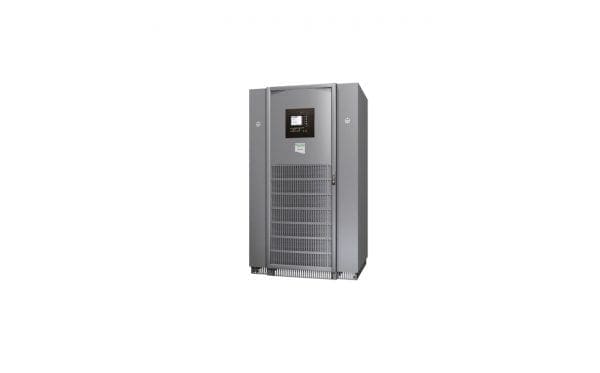

G55TE-BB20K30 Technical Specifications
MGE Galaxy 5500 E Backup Time Blocks & C Breaker 20kVA 30mn Off Shore & Marine
Batteries & Runtime
Battery type
VRLA
Battery Design Life
5 – 10
Battery Service Life
1
Physical
Maximum Height
33.46inches (850MM, 85.0CM)
Maximum Width
47.24inches (1200MM, 120.0CM)
Maximum Depth
31.5inches (800MM, 80.0CM)
Net Weight
1749.0lbs. (795.0KG)
Shipping weight
1804.0lbs. (820.0KG)
Shipping Height
39.37inches (1000MM, 100.0CM)
Shipping Width
47.24inches (1200MM, 120.0CM)
Shipping Depth
31.5inches (800MM, 80.0CM)
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 %
Operating Elevation
0-3333ft (0-999.9meters)
Storage Temperature
-20 – 45 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0-12000ft (0-3600meters)
Conformance
Approvals
CE
Standard warranty
1 year repair or replace
