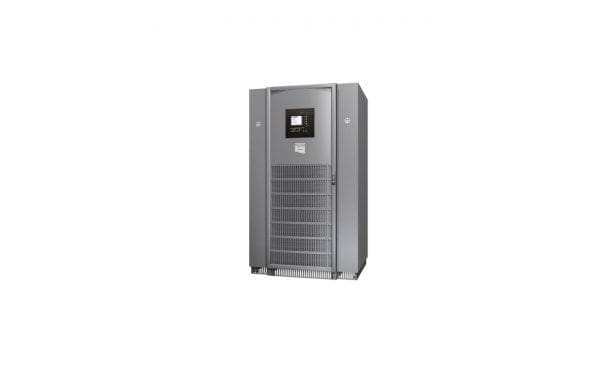

G55TE-BB120K30 Technical Specifications
MGE Galaxy 5500 E Backup Time Blocks & C Breaker 120kVA 30mn Off Shore & Marine
Batteries & Runtime
Battery type
VRLA
Battery Design Life
5 – 10
Battery Service Life
1
Physical
Maximum Height
33.46inches (850MM, 85.0CM)
Maximum Width
141.73inches (3600MM, 360.0CM)
Maximum Depth
31.5inches (800MM, 80.0CM)
Net Weight
5310.8lbs. (2414.0KG)
Shipping weight
2414.0lbs. (1097.27KG)
Shipping Height
39.37inches (1000MM, 100.0CM)
Shipping Width
141.73inches (3600MM, 360.0CM)
Shipping Depth
31.5inches (800MM, 80.0CM)
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 %
Operating Elevation
0-3333ft (0-999.9meters)
Storage Temperature
-20 – 45 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0-12000ft (0-3600meters)
Conformance
Approvals
CE
Standard warranty
1 year repair or replace
