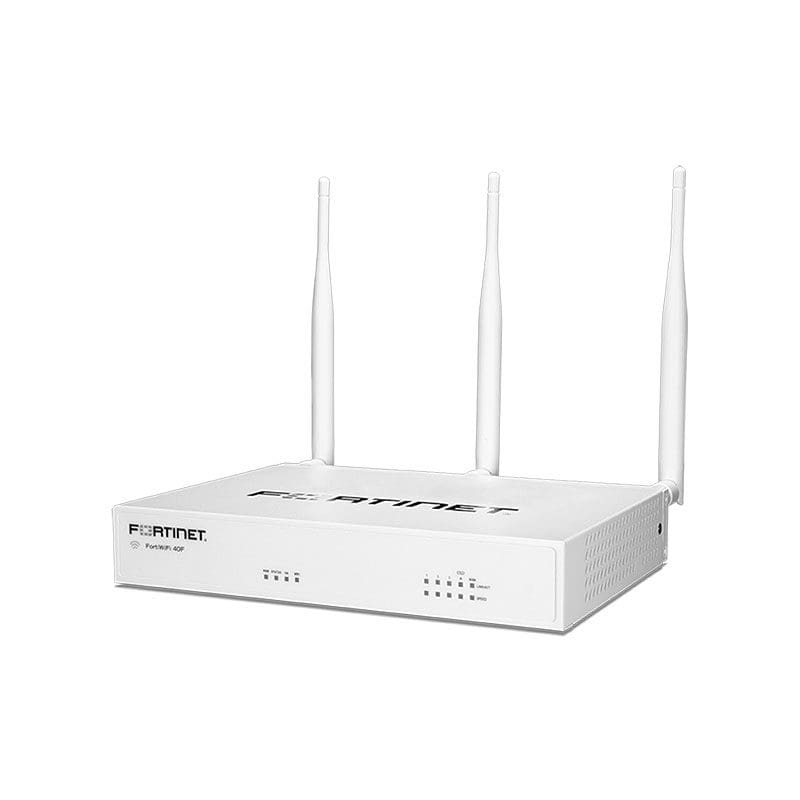

FWF-40F Technical Specifications
FORTINET SME PRODUCTS 5XGE RJ45 PORT INCL 1XWAN PORT 4XINT PORT WRLS 11A/B/G/N/AC
Manufacturer :Fortinet
Brand :Fortinet
Product Line :Fortinet FortiWiFi
Model :40F
Packaged Quantity :1
Antenna
Antenna Qty :2
Processor
Type :FortiASIC SOC4
Installed Qty :1
Manufacturer :Fortinet
Performance
Performance :Firewall throughput (64-byte UDP): 5 Gbps, VPN throughput (512-bit IPSec): 4.4 Gbps, NGFW throughput: 800 Mbps, SSL inspection throughput: 310 Mbps, IPS throughput: 1 Gbps, CAPWAP throughput: 3.5 Gbps, Firewall throughput (1518-byte UDP): 5 Gbps, Firewall throughput: 7.5 Mpps, Firewall throughput (512-byte UDP): 5 Gbps, Threat protection throughput: 600 Mbps, SSL inspection throughput: 320 connections per second, Application control (HTTP 64K): 990 Mbps, VPN throughput (SSL): 490 Mbps
Capacity
Capacity :Latency: 4 µs, Firewall policies: 5000, Number of FortiSwitches: 8, Virtual domains: 10, Gateway to gateway IPSec VPN Tunnels: 200, Client to gateway IPSec VPN tunnels: 250, Concurrent SSL VPN users: 200, New sessions: 35000, Number of FortiAP devices: 10, Number of FortiToken devices: 500, SSL inspection concurrent sessions: 55000, Concurrent sessions: 700000, Number of FortiClient devices: 200
Networking
Type :Security appliance
Form Factor :Desktop
Connectivity Technology :Wireless, Wired
Data Link Protocol :IEEE 802.11a, IEEE 802.11n, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, Gigabit Ethernet, IEEE 802.11ac, Ethernet
Wireless Protocol :802.11a/b/g/n/ac
Network / Transport Protocol :IPSec
Wi-Fi Bands :5 GHz, 2.4 GHz
Status Indicators :Link/activity
Features :Firewall protection, Web threat protection, IPSec Virtual Private Network (VPN), CAPWAP support, Application filtering, FortiLink Mode, 3G/4G USB Dongle Support, Intrusion Prevention System (IPS), Fanless
Compliant Standards :IEEE 802.11a, IEEE 802.11g, IEEE 802.11b, IEEE 802.11n, IEEE 802.11ac
Interface Provided
Interfaces :3 x 1000Base-T – RJ-45, 1 x FortiLink – RJ-45, 1 x USB 3.0 – Type A, 1 x 1000Base-T – RJ-45 (WAN / DMZ), 1 x console – RJ-45
OS Provided
Type :FortiOS
Power Device
Type :External power adapter
Installed Qty :1
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Power Consumption Operational :16.6 watt
Miscellaneous
Color Category :White
Encryption Algorithm :TLS 1.3, SSL
Compliant Standards :UL, cUL, VCCI, C-Tick, CB, FCC Part 15 Class B
Dimensions & Weight
Width :8.5 inch
Depth :6.3 inch
Height :1.5 inch
Weight :2.2 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
